Overview

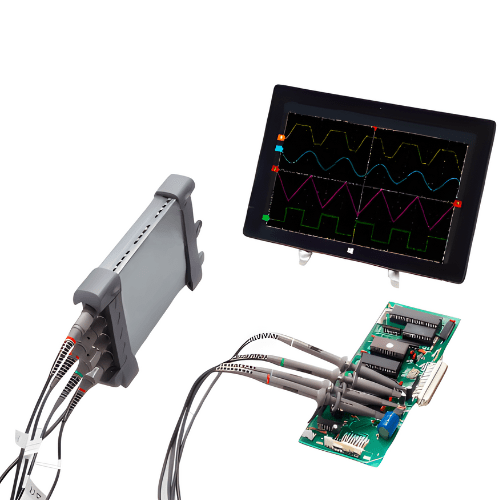

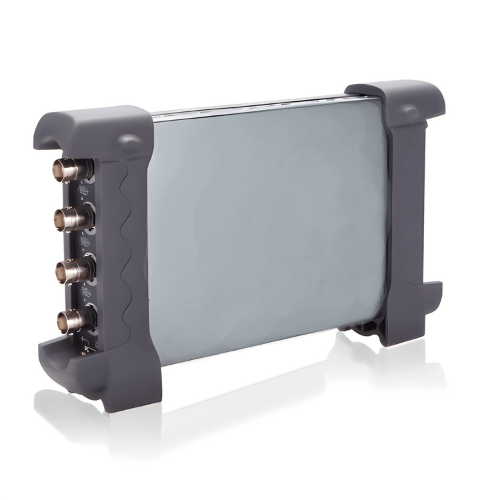

Hospitality Enviro Tech PC-based USB oscilloscope has excellent industrial design: the same anodized aluminum shell, which is not only beautiful and tasteful, but also greatly improves the surface hardness of the aluminum alloy and has good resistance to corrosion warmth and great portability.
Features
- Standard USBXITM interface
- 0 interface
- Suitable for notebook computer
- Be carried easily
- High performance
- Windows 10, 8, 7, NT, XP, VISTA
- 23 measurements functions
- Waveform average
- Waveform in text file, jpg/bmp and excel/word file
- FFT
- One computer connects many
- LabviewVBVC
Technical Specifications
| Channel | 2 Channels |
| Bandwidth | 200 MHz |
| Input Impedance | 1 MΩ 25 pF |
| Max. Sample Rate | 250 MS/s |
| Coupling | AC or DC or GND |
| Vertical Resolution | 8 bits |
| Gain Range | 10 mV to 5 V, 9 V steps |
| DC Accuracy | ±3 % |
| Time Base Range | 4 ns to 1 h, 38 Steps |
| Vertical Adjustable | Yes |
| Input Protection | Diode clamping |
| X-Y | Yes |
| EXT. Input | Yes |
| Trigger Mode | Auto, Normal and Single |
| Trigger Slope | +/- |
| Trigger Level Adjustable | Yes |
| Trigger Type | Rising edge, falling edge |
| Trigger Source | CH1, CH2, EXT |
| Buffer Size | 10 K to 64 KB/Channel |
| Sampling Selection | Yes |

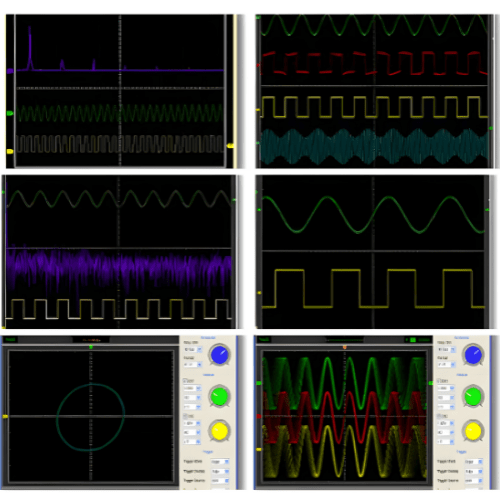

| Waveform Display | Port or line, waveform average, persistence, intensity |
| Network | Open or Close |
| Vertical Mode | CH1, CH2, Dual, ADD |
| Cursor Measurement | Yes |
| Math | FFT, addition, subtraction, multiplication, division. |
| Cursor | Frequency, Voltage |
| Accessories | S or W CD, probes, manual, USB cord |
