Overview

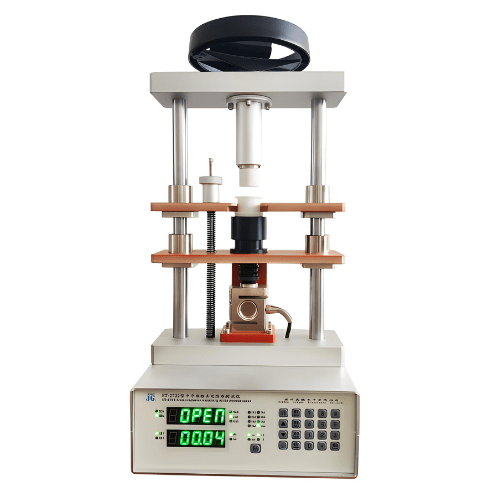

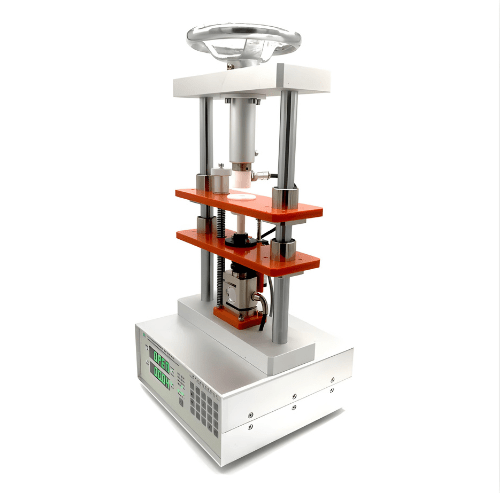

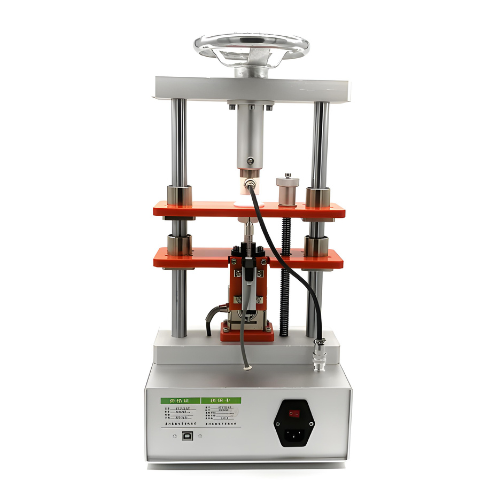

Hospitality Enviro Tech particle powder material tester has the characteristics of simple and efficient operation, high measurement accuracy, good stability, good repeatability, and multi-purpose convenient use. It is also a new feature that is different from the previous old similar test bench! This instrument is suitable for carbon plants, coking plants, petrochemical plants, powder metallurgy plants, universities, scientific research departments, and is an important and excellent tool for testing and analyzing the quality of solid and powder samples.
Features
- USB for high-speed communication
- Database for data storage and expansion
- Auto-generate comprehensive test reports with charts
- Test report preview, edit, and print functions included
Technical Specification
| Resistivity measurement range | 10.0 x 10 to 6 to k x 200.0 x 103 Ω to cm, k = 1 to 10 |
| Resolution | 1.0 x 10 to 6 to 0.1 x 103 Ω to cm, k = 1 to 10 |
| Range | 10 mV to 100 mV, automatic |
| DC | 0.1 µA, 1.0 µA, 10 µA, 100 µA, 1.0 mA, 10 mA, 100 mA, 1.0 A total of 8 levels adjustable |
| Sample particle size | 40 mesh to 60 mesh (standard sieve) is recommended. Generally, other particle sizes are also available |
| Volume of cup | Section, S = 1.0 cm2, Height, 0 in to 0.78 in (0 mm to 20 mm) adjustable |
| measurement error | 0.0007 in (±0.02 mm) |
| The four-digit effective display | 0 in to 0.78 in (0 mm to 20 mm) |
| Standard pressure | P0, 4 Mpa, ±0.05 Mpa |
| Pressure range | 30 Mpa, P = 0 Mpa to 30 Mpa adjustable |
| Four-digit effective display | 00.00 Mpa to 30.00 MPa |
| resolution | ± 0.01 MPa |
| Working power | 220 V, (110 V), ±10%, f = 50 Hz, Pw < 10 W |
| Temperature | 32 ℉ to 104 ℉ (0 ℃ to 40 ℃) |
| Relative humidity | ≤60% RH |
