Overview

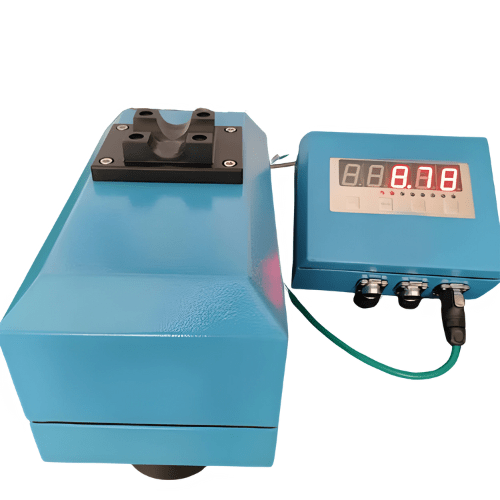

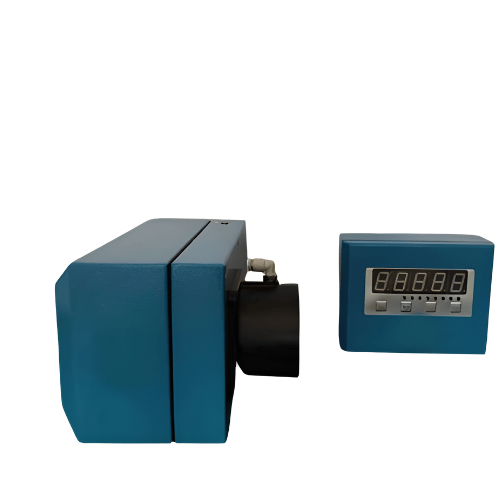

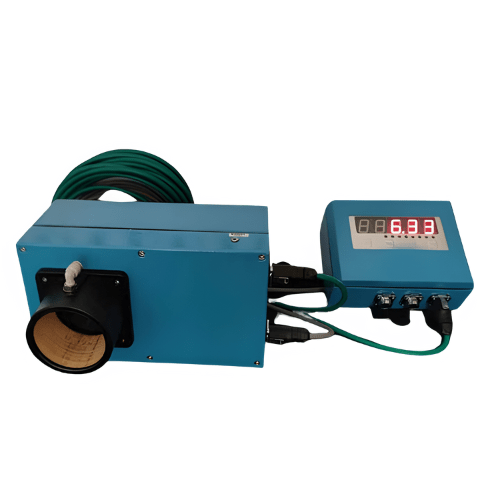

Hospitality Enviro Tech paper belt moisture analyzer Infrared online moisture analyzer, non-contact, continuous, real-time, on-line measuring moisture. The distance is 20cm-40cm, high accuracy, wide range, and provides 4-20mA current signal, automated control
Features
- Fast measurements
- Reliability
- Non-contact and fast response
- Stable performance, high precision
- Easy to install, easy to operate
Technical Specifications
| Measuring Range | 0% to 99% (can OEM) |
| Measurement Resolution | 0.01% |
| Measuring Accuracy | 0.1%FS to 0.5%FS |
| Repeatability | 0.1% |
| Static Accuracy | 0. 1% |
| Light Diameter | 40mm |
| Light Beam | 5 |
| Infrared Wavelength | 1940 nm |
| Infrared Bandwidth | ±50 nm |
| Filtering Range | 0% to 2.5% |
| Measuring Channel | 10 |
| Current Signal | 4mA to 20mA |
| Upper And Lower Control | Self-edit by end user |
| Measuring Time | 0s to 60s |
| Sampling Frequency | 125 ms / time |
| Measuring Distance | 250 mm±100 mm |
| Measuring Thickness | 0.1mm to 0.3mm |
