Features
- Design for real time detecting
- Electrochemical ozone sensor with high sensitivity

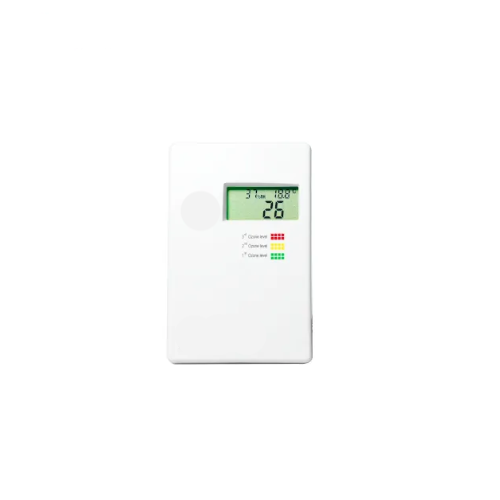

- Buzzer alarm and 3 color backlight LCD notification
Technical Specification
| Sensing Element | Electrochemical gas sensor |
| Sensor lifetime | >2 years, removable |
| Temperature Sensor | NTC |
| Humidity Sensor | HS series capacitive sensor |
| Power Supply | 24 V AC or V DC (power adaptor selectable) |
| Power Consumption | 2.8 W |
| Response Time | <60 s |
| Signal Update | 1 s |
| Warm up Time | <60 s |
| Ozone Measuring Range | 0 ppb to 5000 ppb (0 PPM to 5 PPM) (0 mg/m3 to 9.81 mg/m3)0 ppb to 1000 ppb |
| Display Resolution | 1 ppb (0.001 PPM) (0.01 mg/ m3) |
| Accuracy | ±0.01 PPM + 10% reading |
| Nonlinear | <1% FS |
| Repeatability | <0.5% |
| Zero Drift | <1% |
| Alarm | Buzzer and Yellow or Red backlight switch |
| Temperature/humidity Measuring Range | 41 ℉ to 140 ℉ (5 ℃ to 60 ℃),0% RH to 80% RH |
| Analog Output | 0 V DC to 10 V DC (default) or 4 mA to 20 mA linear output selectable |
| Analog Output Resolution | 16 Bit |
| Relay dry contact Output | Two dry-contact outputs Max, switching current 3 A (220 V AC to 30 V DC), resistance Load |
| Working Condition/Storage Conditions | 41 ℉ to 140 ℉ (5 ℃ to 60 ℃) ,0% RH to 80% RH |
| Installation Standard | 2.5 in x 2.5 in (65 mm × 65 mm) or 3.3 in x 3.3 in (85 mm x 85 mm) |
| Dimensions | 5.11 in x 3.34 in x 1.43 in (130 mm × 85 mm × 36.5 mm) |
| Net Weight | 0.418 lb (190 g) |
