Features

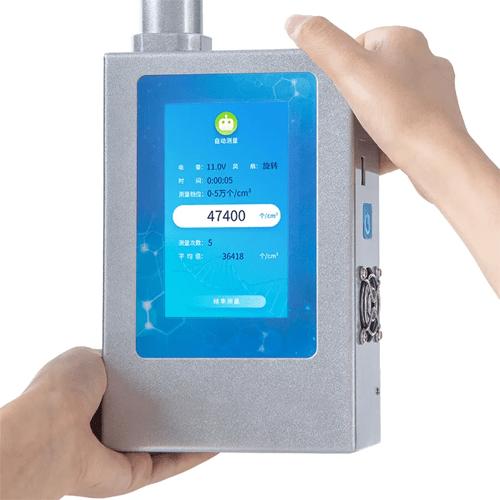

- 0″ touch screen displays real-time multi-parameter measurements
- Advanced capacitive suction method ensures precise measurement accuracy
- Compact design, portable for versatile environmental testing needs
- Long-lasting battery enables testing without power limitations or restrictions
- Sensitive response: The data refresh rate reaches 1 second/time
- Easy operation, clear full-color display with large fonts
Technical Specifications
| Measurement Function | Manual measurement, automatic measurement |
| Range | 0 gears to 50000 gears, 10 gears to 500000 gears, 10 million gears to 5 million gears |
| Measurement Accuracy | ±5% |
| Resolution | 1 unit/cm3 |
| Migration Rate | (0.4 to 1.0) cm2/V x sec |
| Measurement Interval | 1 second/time |
| Measurement Mode | Continuous |
| Communication Interface | USB |
| Power Supply | DC 12 V 1A adapter |
| Average Power Consumption | ≤2W |
| Working Environment | Temperature 32 °F to 140 °F (0 ℃ to 60 ℃); Humidity: 0% to 85% RH |
| Display Data Units | ppm and mg/m3 |
| Range | 0 ppm to 5 ppm |
| Resolution | 0.01 ppm |
| Preheating Time | Less than 3 minutes |
| Response Time | Less than 60 seconds |
| Recovery Time | Less than 60 seconds |
| Working Temperature | -4 ℉ to 122 ℉ (-20 ℃ to 50 ℃) |
| Working Humidity | 15% RH to 90% RH (without condensation) |
| Storage Temperature | 32 ℉ to 77 ℉ (0 ℃ to 25 ℃) |
| Built-in Battery | Battery power supply time ≥ 8 hours |
| Dimensions | 7.87 in x 5.19 in x 2.28 in (200 mm x 132 mm x 58 mm) |
| Weight | 2.20 lb. (1 kg) |
