Overview

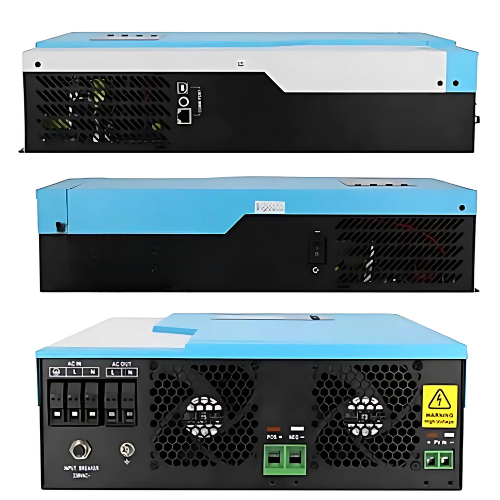

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features
- Pure sine wave solar inverter
- Wifi and GPRS available for 10 S and android (optional)
- Built in 100 A MPPT solar charger
- Built in anti dusk kit for harsh environment (optional)
- Output power factor 1.0
- Inverter running without battery
- High PV input voltage range (120 to 500 V DC)
- Smart battery charge design to optimize battery life
Technical Specifications
| Rated Power | 3500 V A or 3500 W |
| Voltage | 230 V AC |
| Input Voltage | 220 V to 240 V |
| Output Voltage | 110 V to 120 V and 220 V to 230 V |
| Selectable Voltage Range | 170 VAC to 280 V AC (For Personal Computers) |
| 90 VAC to 280 V AC (For Home Appliances) | |
| Frequency Range | 50 Hz or 60 Hz (Auto sensing) |
| AC Voltage Regulation (Batt. Mode) | 230 VAC plus or minus 5 % |
| Surge Power | 7000 V A |
| Output Current | 0 A to 80 A |
| Efficiency (Peak) PV to INV | 97 % |
| Efficiency (Peak) Battery to INV | 94 % |
| Transfer Time | 10 minutes (For Personal Computers) and 20 ms (For Home Appliances |
| Battery Voltage | 24 V DC |
| Floating Charge Voltage | 27 V DC |
| Overcharge Protection | 33 V DC |
| Maximum Charge Current | 80 A |
| Maximum PV Array Power | 5000 W |
| MPPT Range @ Operating Voltage | 120 VDC to 450 V DC |
| Maximum PV Array Open Circuit Voltage | 500 V DC |
| Maximum Charging Current | 100 A |
| Maximum Efficiency | 98 % |
| Communication Interface | USB or RS 232 or GPRS or WIFI |
| Noise | Less than or equal to 60 dB |
| Humidity | 5 % to 95 % Relative Humidity (Non condensing) |
| Operating Temperature | – 32 °F to 131 °F (0 ℃ to 55 ℃) |
| Storage Temperature | 5 °F to 140 °F (- 15 ℃ to 60 ℃) |
| Dimension D x W x H | 3.94 in x 11.81 in x 17.32 in (10 cm x 30 cm x 44 cm) |
| Net Weight | 26.46 lb (12 kg) |
