Overview

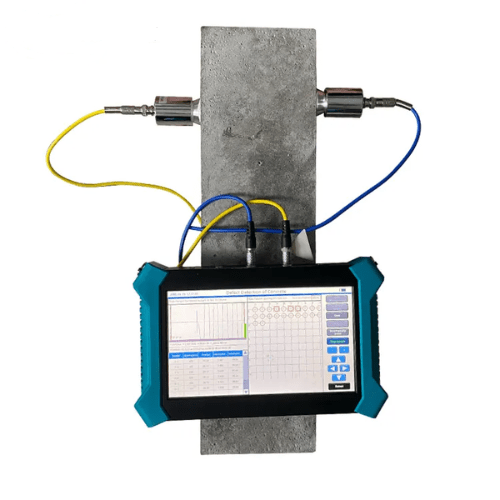

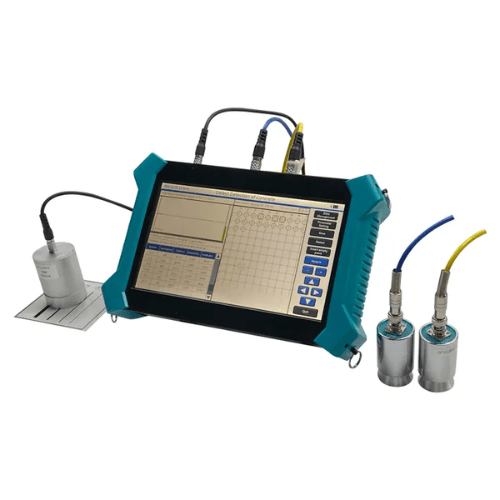

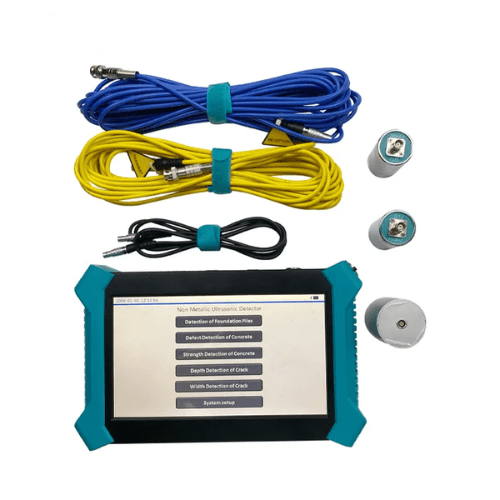

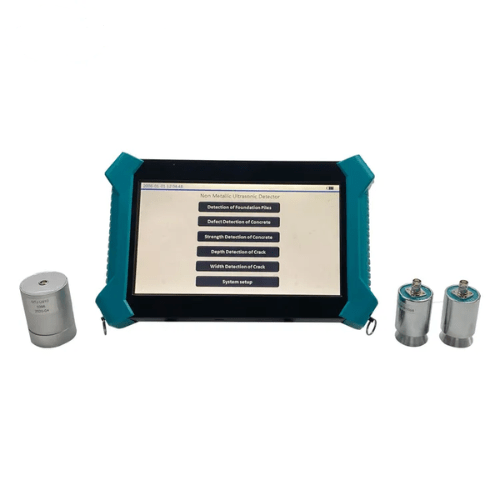

Hospitality Enviro Tech Non-Metallic Ultrasonic Detector measures structural concrete compressive strength, crack depth, crack width and defect detection; ultrasonic transmission method for detecting pile and continuous wall integrity. It integrates five functions of pile testing, ultrasonic rebound comprehensive method for strength measurement, defect measurement, crack sounding and width measurement. Geological exploration, rock integrity, weathering evaluation test; mechanical properties of non-metallic materials such as rock mass and concrete.
Technical Specifications
| Master Control Unit | Buit-in A9 industrial control motherboard |
| Display | 10.1-Inch, high brightness, TFT color LCD capacitive screen |
| Operational Mode | Touch screen |
| Storage Mode | Built-in Electronic Hard Disk (>8 GB) +Large Capacity U Disk |
| Data Transmission Mode | Wireless Cloud Transport (Options) |
| Acquisition Mode | Single-channel, manual point-by-point acquisition |
| Channel Number | 1 Transmit+1 receive |
| Trigger Mode | Signal triggering |
| Sampling Period(μs) | 0.05~409.6 Multistage Options |
| Acoustic Time Accuracy(μs) | 0.05 |
| Acoustic Time Range(μs) | +1677700 |
| Width Measurement Function | Range: 0 in to 0.39 in (0 mm to 10 mm) Accuracy: 0.01mm |
| Dynamic Range(dB) | 146 |
| BandWidth(kHz) | 1 to 500 |
| Emission Voltage(V) | 65, 250, 500 and 1000 Gears adjustable |
| Communication | UBS, Bluetooth, Wifi |
| Working Hours(h) | More than 8 |
| Power Supply Mode | Built-in lithium battery External 220V~ 16V AC/CD |
| Working Environment | Temp.: 14 °F to 104 °F (-10 ℃~ + 40 ℃) Humidity (RH) <90% |
| Host Size(mm) | 11.81 in x 7.87 in x 2.17 in (300 mm x 200 mm x 55 mm) |
