Features
- LCD high brightness and clear picture
- USB interface and large capacity
- Long-term information collection
- Powerful PC analysis software
- Data acquisition, monitoring, recording, and controlling.

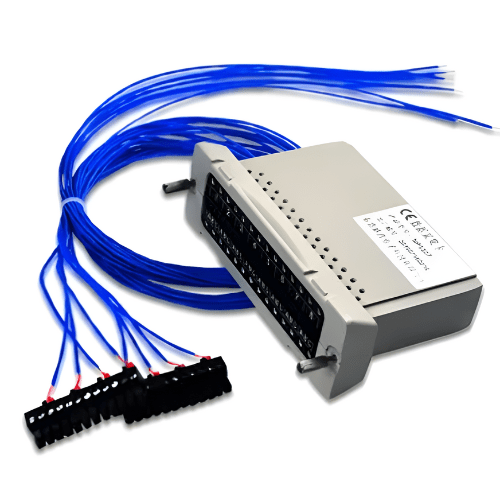

- Blue wire is K-type thermocouples.
Technical Specification
| Power supply | AC 85 V to 265 V, DC 12 V to 25V |
| Channel | 1 to 64 Channels |
| Sampling frequency | 1 to 19999 s self setting |
| Alarm type | High and low limit alarm |
| Communication | RS 232, RS 485,ethernet, USB, mudbus TCP communication protocol |
| Operating temperature and humidity | -4 °F to 122 °F (-20 ℃ to 50℃ ),Less than 95% non condensing |
| Material | Fire ABS |
| Measurement accuracy | ≤±0.2 % F.S |
| Recording model | loop record. |
| Relay | TP1718 |
