Features
- Versatile measurements
- Utilizes catalytic combustion, electrochemical, or infrared sensors
- Achieves T90<30 s for quick data acquisition
- Equipped with a 1200 mAh DC6 V Li-ion battery for extended operation
- Efficient Charging: Charges fully in 4 hours to 6 hours
- Resilient in Various Environments: Robust Design: Boasts an IP66 rating for durability
- Compact and Lightweight
Technical Specifications
| Measurement Range | 0 ppm to 1 ppm, 0 ppm to 10 ppm |
| Sensor Type | Electrochemical sensor, catalytic combustion sensor, PID sensor |
| Response Time (T90) | <30 seconds |
| Battery | 3.6 V Li-ion battery, 1200 mAh |
| Charging Time | 4 hours to 6 hours |
| Humidity | <95% RH, no condensation |
| Operating Temperature | -22 °F to +122 °F (-30 °C to +50 °C) |
| IP Grade | IP 66 |
| Gas Detection | Single Gas, TWA, STEL |
| Gas Range | Customizable, as per request |
| Alert Value | Customizable, as per request |
| Accuracy | ±3% of Full Scale (F.S) |

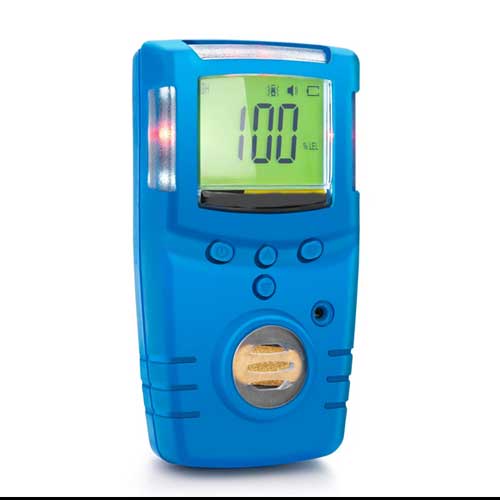

| Display | Large STN LCD indicating real-time and system state |
| Alarm | Audible and visual, vibration (85dB, higher frequency for higher gas concentration) |
| Sampling Method | Natural diffusion |
| Fault Indication | Indications of Zero-point drift and sensor failure |
| Duration of Operation | Up to 300 hours (non-stop) |
| Ingress Protection | IP 65 |
| Explosion Proof | Ex ia IIC T4 Gb |
| Dimensions | 4.02 in x 2.20 in x 1.02 in (102 mm x 56 mm x 26 mm) |
| Weight (Including Battery) | About 0.264 lb (120 g) |
