Overview

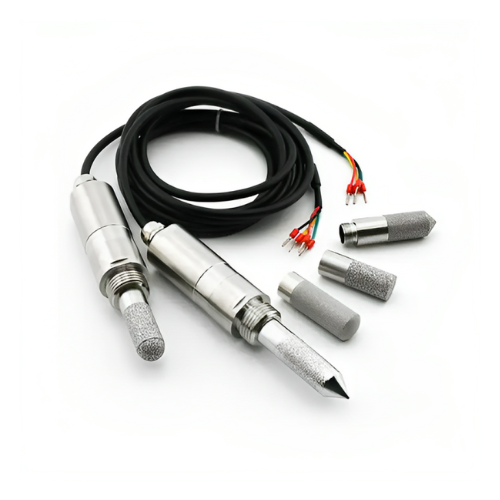

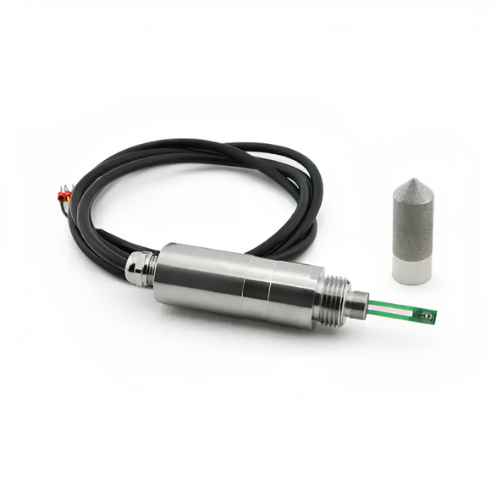

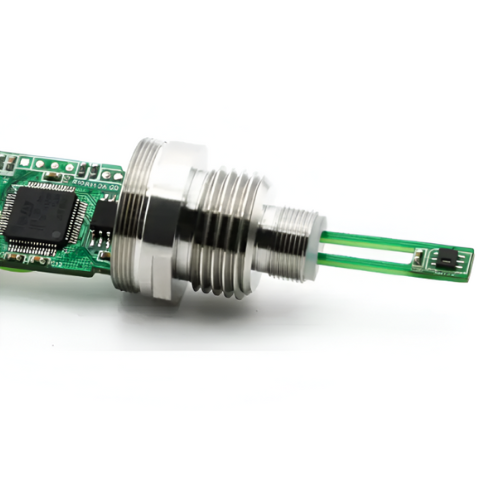

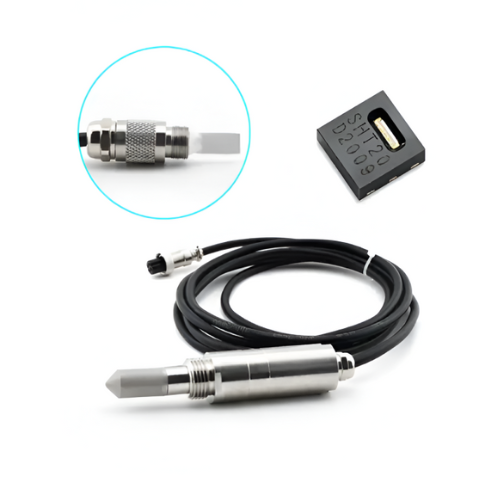

Hospitality Enviro Tech monitor moisture temperature probe sensor adopts high precision temperature and humidity sensor. It can collect temperature and humidity data with the advantages of high precision, low power consumption and excellent consistency. The collected temperature and humidity signal data can calculate dew point data and via RS 485 interface output. With Modbus RTU communication, it can be networked with PLC, man-machine screen, DCS and various configuration software to collect the temperature and humidity data. This product can be used in cold storage temperature and humidity data acquisition, greenhouse, animal breeding, industrial environment monitor, temperature and humidity monitoring of granary, etc.
Feature
- It is integrated with temperature and humidity transmitter
- Dew point data can be calculated
- High acquisition accuracy and fast response
- Transfer data to computer for viewing
Technical Specifications
| Output | RS 485 |
| Function | Transfer data to computer for viewing |
| Application | Agriculture, soil, egg incubator, HVAC, weather stations |
| Theory | current and inductance |
| Humidity range | 0% RH to 100% RH |
| Humidity | ±1.5% RH at 20% RH to 80% RH |
| Temperature | ±0.18 ℉ at 77 ℉ (±0.1 ℃ at 25 ℃) |
| Working voltage | DC 3 V to 5 V |
| Output Function | OverTemp, UnderTemp |
| Temperature range | -22 ℉ to 176 ℉ (-30 ℃ to 80 ℃) |
