Overview

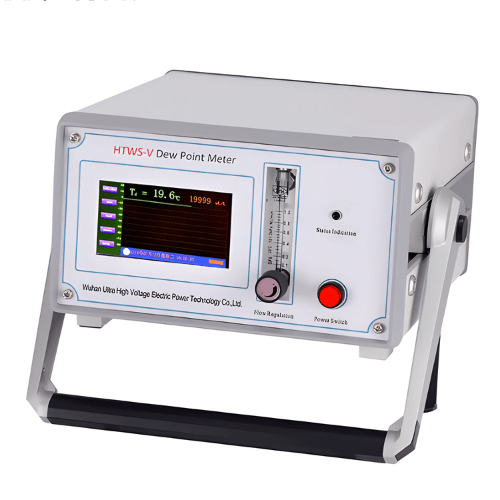

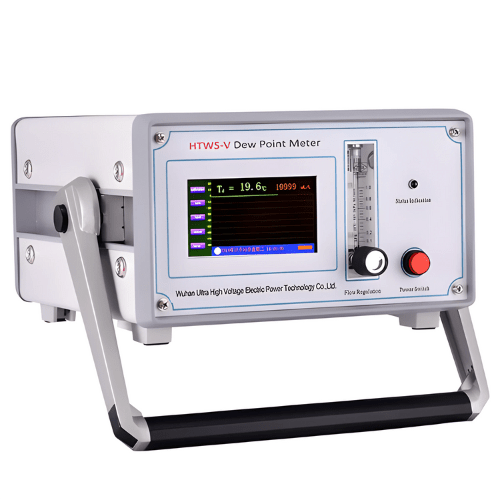

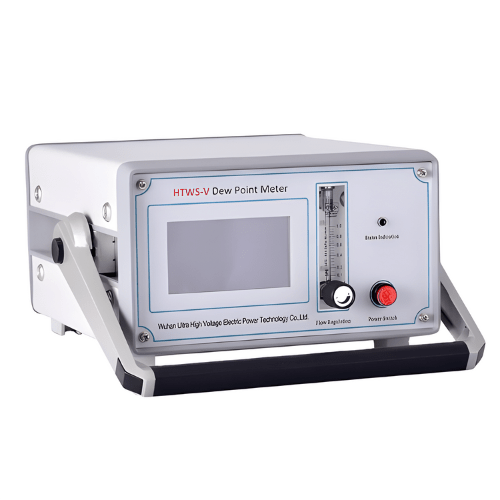

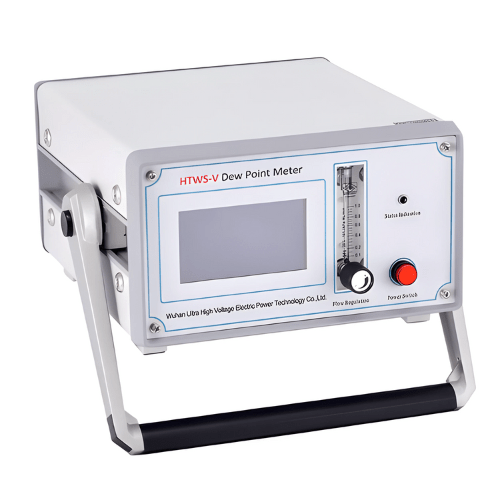

Hospitality Enviro Tech micro moisture meter, meticulously developed and designed, integrates original imported high-precision dew point sensors and advanced digital circuit control technology. This high-precision intelligent device is specifically engineered for measuring trace moisture content in SF6 gas. This device adopts intelligent self-calibration technology, with a wide measurement range, fast response speed, high accuracy, good linearity, and dynamic display of measurement curves. At the same time, it also comes with an automatic dryer, which can greatly shorten the measurement time.
Technical Specifications
| Measuring Range | Dew point value -112 °F to 68 °F (-80 °C to 20 °C) Moisture content 0 uL per L to 19999 uL per L |
| Accuracy Of Measurement | ±32.9 °F (±0.5 °C) for -76 °F to 68 °F (-60 °C to 20 °C) ±33.8°F (±1.0 °C) for -112°F to -76 °F (-80 °C to -60 °C) |
| Resolution | Dew point value 32.18 °F (0.1 °C) Moisture content 1 uL per L |
| Response Time (68 °F (+20 °C), 0.1 MPa) | 63 % need 5 s, 90% need 45 s (-112°F to 68 °F (-80 °C to 20 °C)) 63 % need 10 s, 90 % need 240 s (68 ° F to -112°F (20 °C to -80 °C)) |
| Sampling Flow | 0.6 liters per minute with a tolerance of ±20 % |
| Pressure Range | 0 MPa to 1.0 MPa |
| The Use Of Temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Environmental Humidity | 0 % to 100 % RH |
| Charging Time | 4 hours |
| Size | 9.84 in x 5.91 in x 11.81 in (250 mm x 150 mm x 300 mm) |
| Weight | 7.71 lb, 0.0035 ton (3.5 kg) |
