Overview

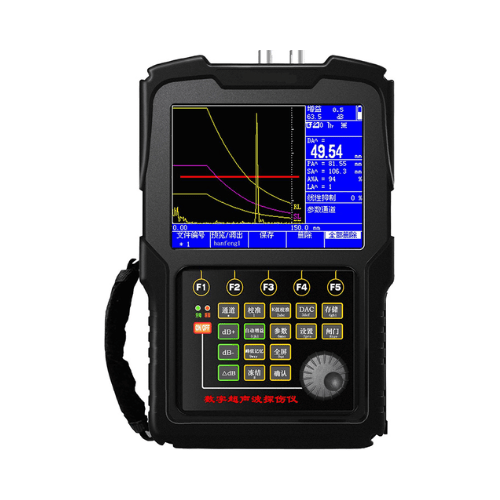

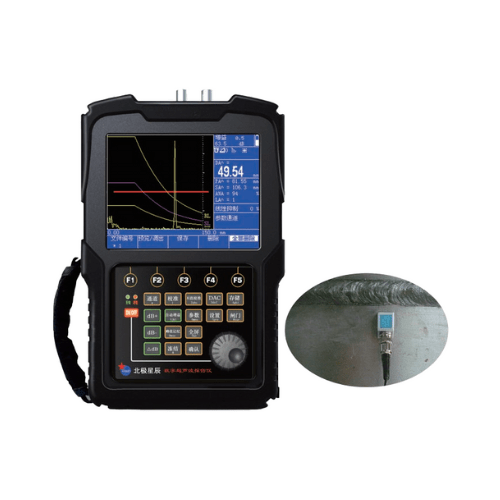

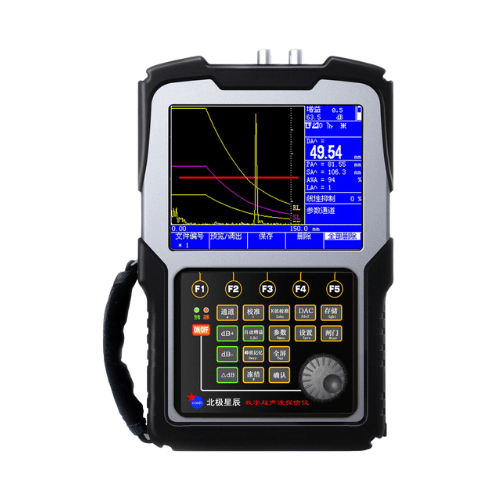

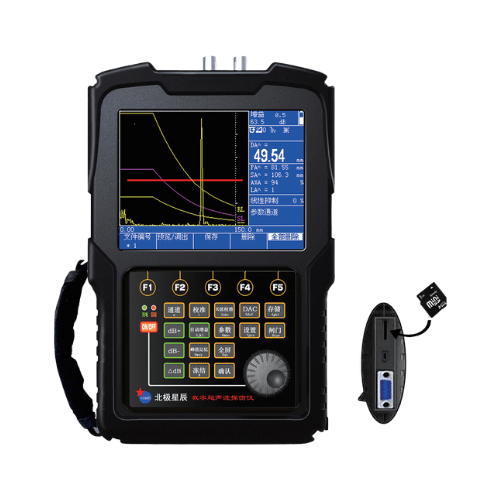

Hospitality Enviro Tech Metal Ultrasound Flaw Detector is an economical and practical model. Except for the differences of its measuring range, working frequency and transmitted pulse parameter, the other performances are the same based on ultrasonic pulse reflection testing principle, controls all testing process by the mini processor. And it has low power design and can-do charge with two models such as online charging and offline charging. And it can work continuously about 8 hours.With large capacity, digital multi-color TFT LCD, original imported stable IC, small size, light weight, stable performance and favorable price, one of our company’s high promoted super cost performances and economically ultrasonic flaw detector.
Technical Specifications
| Bandwidth | (0.2 to 15) MHz |
| Material Velocity | (1000 to 9999) m / s |
| Dynamic Range | 32 dB |
| Vertical Linear Error | ≤ 3% |
| Horizontal Linear Error | ≤ 0.2% |
| Resolution | 40dB (5P14) |
| Rejection | (0 to 80) % Linear |
| Noise Level | ≤ 10% |
| Power Supply | DC 9 V; lithium batteries work for 4 to 8 hours or more |
