Overview

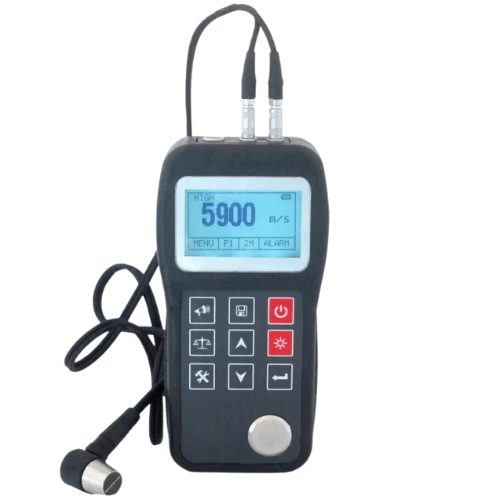

Hospitality Enviro Tech material handheld environmental tester is applicable for measuring the thickness of any material in which ultrasonic wave can be transmitted and reflected back from the other face. The gauge can provide quick and accurate measurement to various work pieces such as sheets of board and processing parts. Another important application of the gauge is to monitor various pipes and pressure vessels in production equipment and monitor the thinning degree during use. It can be widely used in petroleum, chemical, metallurgy, shipping, aerospace, aviation and other fields.
Technical Specifications

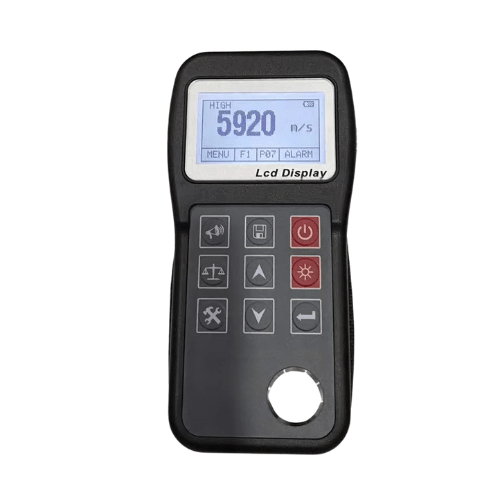

| Display | 4.5 in (11.43 cm) LCD with EL backlight |
| Measuring range | 0.02 in (0.75 mm) to 11.8 in (300 mm) in steel |
| Sound velocity range | 1000 m/second to 9999 m/second |
| Resolution | 0.003 in (0.1 mm) |
| Accuracy | 1% thickness 0.003 in (+0.1 mm) depends on materials and conditions |
| Measurement frequency | 4 times per second for single point, 10 times per second for scan mode |
| Working modes | Single point and scanning measurement |

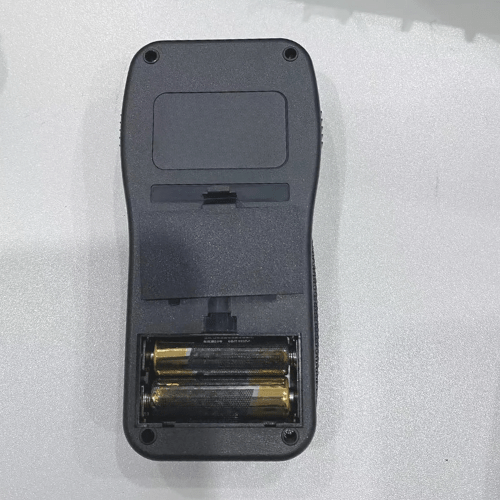

| Power supply | 2 AA size 1.5 V dry cell |
| Working time | 100 hours around no backlight |
| Size | 5.9 in x 2.9 in x 1.2 in (150 mm x 74 mm x 31 mm) |
| Weight | 8.6 oz (245 g) |
