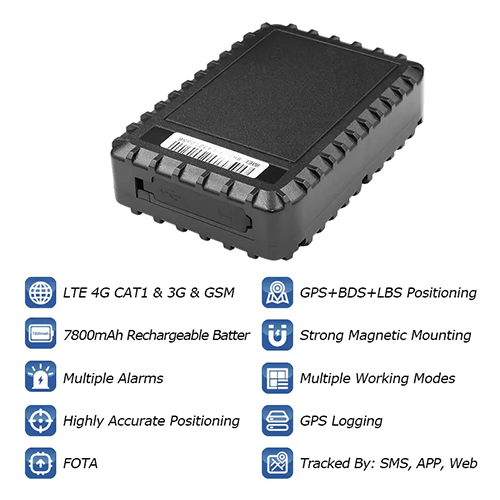

Features
- GPS logging
- Strong magnetic mounting
- Highly accurate positioning
- GPS + LBS + BDS positioning
- Multiple alarms
Technical Specifications
| Chipset | AT6558 |
| Sensor | Light sensor |
| Beidou | Support |
| SIM card | 3G/4G Sim Card, 1 piece |
| Working frequency | LTE-FDD, LTE-TDD,WCDMA, GSM / EDGE |
| I/O interface | No |
| Working hours of the device (working 1 hour per day) | 50 Days |
| Working hours of the device (continuous work) | 8 Months |
| Positioning mode | GPS + LBS |
| Working Temperature | -13 oF to 167 oF (-25 ℃ to 75 ℃) |
| Operating humidity | 5% RH to 95% RH Do not freeze |
| Light sensor alarm | Support |
| Positioning accuracy | 393.70 in (10000 mm), 2D RMS |
| GPS Chip Level Receiver Sensitivity | track: 165 dBm, capture: 148 dBm |
| Average operating current | 0.048 A |
| GPS signal | L1, 1575.42 MHz C/A |
| Battery | 5000 mAh |
| Size | 4.33 in x 3.03 in x 1.10 in (110 mm x 77 mm x 28 mm) |
| Weight | 0.63 lb (290 g) |
