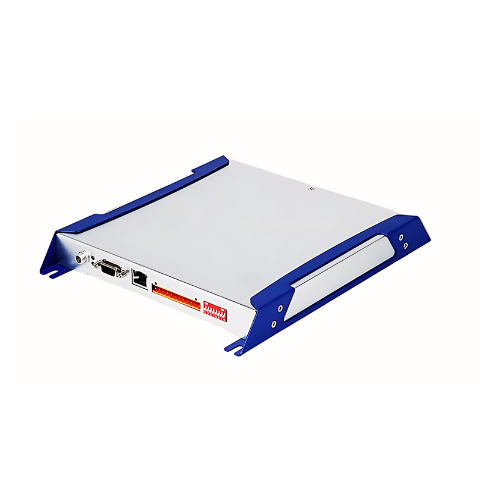

Hospitality Enviro Tech Long Range UHF RFID Reader For Warehouse Logistics Access Control Management– With The Frequency From 860 MHz To 960 MHz

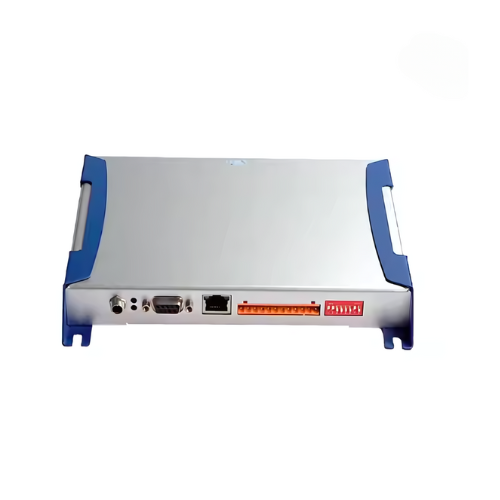

Hospitality Enviro Tech Long Range UHF RFID Reader For Warehouse Logistics Access Control Management– With The Frequency From 860 MHz To 960 MHz - Image 2

Hospitality Enviro Tech Long Range UHF RFID Reader For Warehouse Logistics Access Control Management– With The Frequency From 860 MHz To 960 MHz

This long Range UHF RFID Reader is for warehouse logistics and access control. Aluminium shell, 3.28 ft to 98.42 ft read range, and robust design.

SKU: HETUHF-268 Category:

Technical Specifications

Frequency 860 MHz to 960 MHz
Protocol EPC global UHF Class 1 Gen 2 or ISO 18000-6C
Shell Material Aluminum
Input Voltage DC 12 V to 24 V
Standby Current < 70 mA
Max Working Current 800 mA +/- 5 % at DC 12 V Input (33 dBm Output power working current)
Output Power 0 dBm to 33 dBm
Output Power Accuracy +/- 1 dB
Output Flatness +/- 0.25 dB
Receive Sensitivity < -85 dBm
Reading Speed 700 tags per second
RSSI Support
Antenna Connection Protection Support
Environment And Temperature Monitor Support
Working Mode Single Tag or Multi-tag mode
Communication Interface RS232 or TCP or IP
GPIO 2 channel input, 2 channel output
Max Bps Default: 115200 bps (adjustable: 38400 or 460800)
Reading Distance 3.28 ft to 98.42 ft (1 m to 30 m)
Operating Humidity < 95% 77 °F (+ 25 °C)
Working Temperature -22 °F to 158 °F (- 30 °C to +70 °C)
Storage Temperature -40°F to 185 °F (- 40 °C to + 85 °C)
Size 7.87 in x 8.03 in x1.18 in (200 mm x 204 mm x 30 mm)
Weight 28.92 oz (820 g)
