Hospitality Enviro Tech Long Range 902-928MHz RFID Reader Flat Panel Antenna RHCP 8.5 dBi N Female IP67 868 MHz 915 MHz UHF Directional Antenna For Tag – IP67 Rated For Indoor and Outdoor
RFID Antenna with Flat Panel Antenna RHCP 8.5 dBi N Female IP67 868 MHz 915 MHz UHF Directional antenna.
RFID Panel Antenna with 7.5″ square perfectly works at 915MHz 902-928
Designed In a Compact, Versatile and Light Weight Package
Panel Antenna for LoRa, Helium, 900 MHz Band ISM And Data
Provides a Peak Gain Of 8.5dBi
With a Very Usable 65-degree Half Power Beam Width

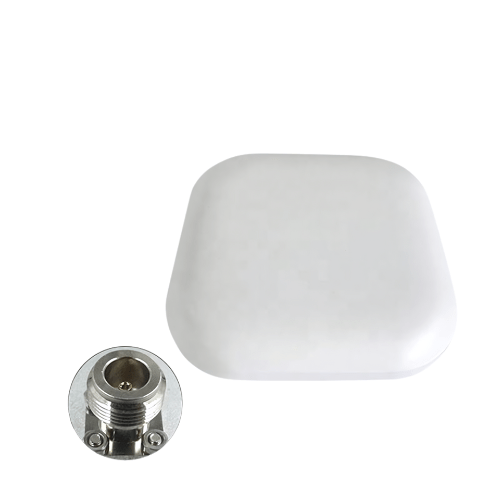

N-type female connector at rear
Rugged Ultra heavy-duty construction
IP67 Rated for indoor and outdoor
Technical Specifications
Frequency
902 MHz to 928 MHz
VSWR
≤ 1.5
Impedance
50 Ω
Gain
8.5 dbi
Radiation Type
Directional
Polarization
Circular
Axial Ratio
≤ 2
Horizontal Beamwidth
65 Deg (± 2 Deg)
Vertical Beamwidth
70 Deg (± 2 Deg)
Power
50 W
Connector
N female
Housing Material
ABS
Dimensions
7.48 in x 7.48 in x 1.06 in (190 mm x 190 mm x 27 mm)
Gross Weight
15.67 oz (450 g)
