| Principle |
Karl Fischer volumetric , Permanent stop titration |
| Min Titration |
5 μL |
| Measuring Range |
10 μg H2O to 550 mg H2O |
| Moisture Range |
10 ppm, 100% |
| Measuring Resolution |
1 ppm |
| Polarized Current |
±1000 μA |
| Burette Capacity |
20 mL |
| Burette Accuracy |
5 E -5, 1/20000 mL |
| Titration Linear Correlation Coefficient |
≥0.999 |
| Custom Measurement Method |
Max 10 groups |
| Display And Operation |
4.3 in (109.22 mm) large LCD display, keystroke input |
| Stirring Speed |
Stepless adjustment |
| Drift Value, Blank Value Deduction |
Measure the drift value, set whether deduct freely |
| Store Data |
200 |
| Special Function |
Split mixing table, titration delay, end point judgment delay, automatic cleaning, automatic operation, constant temperature stirring , optional |
| Print Function |
Add external dedicated printer |
| Automatic Cleaning |
One button cleaning function such as startup cleaning, shutdown cleaning, cleaning to be inspected, pipeline cleaning, and titration pool cleaning |
| Number Setting |
User set operator and sample number freely |

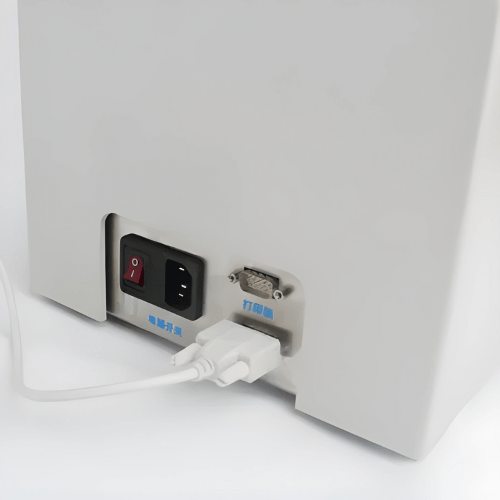

| Data Communication |
RS 232 serial port can connect peripheral devices |
| Calendar, Time |
Calendar, Time Current time, date, detection time and date display and printout |
| End Indication |
End point indication Screen prompt, Printout , need to configure the printer, Sound warning, End point light indication |
| Powder |
220 V, 50 Hz, 150 W |
| Use Environment |
Humidity <90% |
| Power Consumption |
≤50 W |
| Ambient Temperature |
5.6 ℉ to 122 ℉ (2 ℃ to 50 ℃) |
| Dimensions |
13.78 in × 11.81 in × 6.69 in (350 mm × 300 mm × 170 mm) |
| Net Weight |
26.5 lb (12.0 kg) |
