Overview

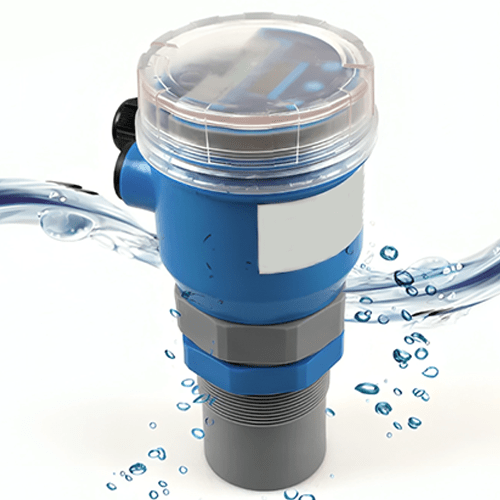

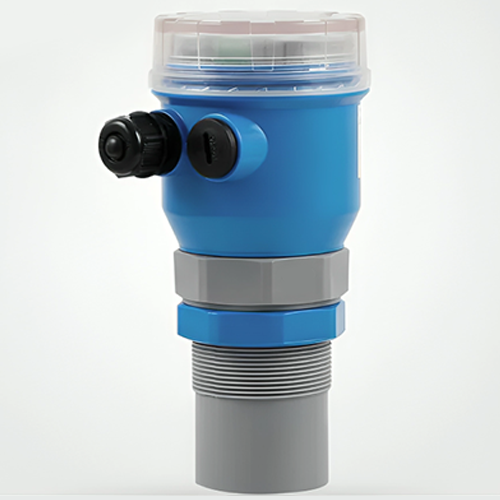

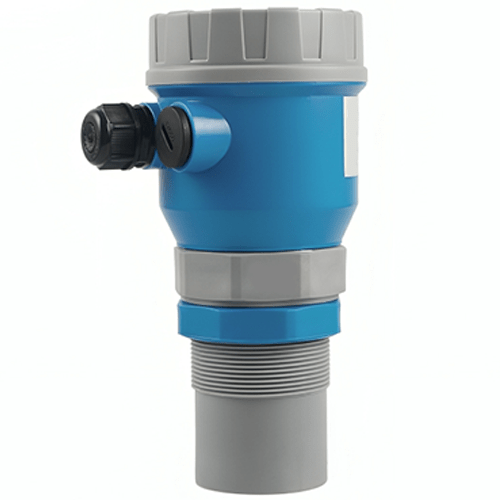

Hospitality Enviro Tech liquid level meter are used in a wide variety of applications to detect the location of level in a process or storage vessel. These switches can be used in virtually any liquid. A complete offering of materials and mounting configurations are available to meet your application needs.
Technical Specifications
| Level range | 196.8 in to 590.5 in (5 m to 15 m) |
| Blind area | 11.81 in to 47.24 in (300 mm to 1200 mm) |
| Beam angle | 12° |
| Accuracy | 0.5%F. S |
| Output | 4 mA to 20 mA, 0 V to 5 V, 1 v to 5 v, RS485, NPN |
| Power supply | DC24V |
| Pressure port | M68 x 20 male |
| Working temp | 40 °F to 185 °F (-40 ℃ to 85 ℃) |
| Housing | ABS/ Nylon |

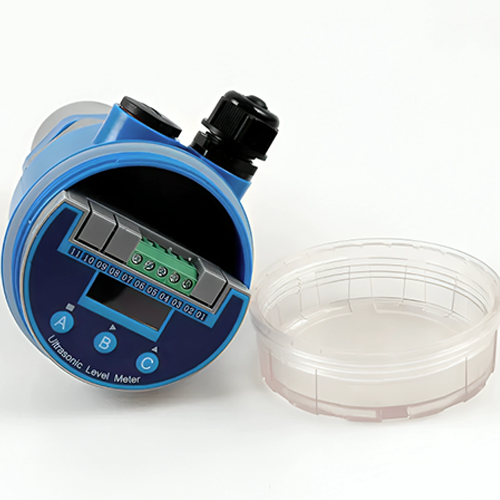

| Display | LED display |
