Overview

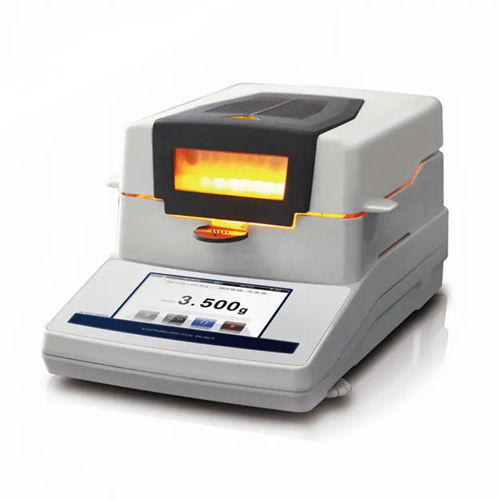

This Lab Moisture Analyzer Tester has an accuracy 1 mg to 10 mg, operating temperature range of 41 °F to 95 °F ,7 in display panel and 10,000 mAh battery.
Features
- Touchscreen with clear weighing & moisture display
- Calibratable for weight, temp, clock; manual, timer, auto modes
- Rapid, uniform heating with halogen lamp
- Quick sample testing in minutes
- R232 interface for computer, printer connection
Technical specifications
| Output Interface | RS232 | |||
| Accuracy | 1 mg | 2 mg | 5 mg | 10 mg |
| MOQ | 1 Set | |||
| Power Supply | 220 V | 110 V | ||
| Capacity | 0.24 lb (110 g) | 0.46 lb (210 g) | ||
| Readability | 0.001 g | |||
| Operating Temp | 41 °F to 95 °F (5 ℃ to 35 ℃) | |||
| Pan Size | 3.93 in (100 mm) | |||
| Heating Source | Halogen Lamp | |||
| Temp Source | PT100 | |||
| Temp Range | 104 °F to 446 °F (40 ℃ to 230 ℃) | |||
| Temp Step | 33.8 °F (1 ℃) | |||
| Moisture Range | 0.00％ to 100.00％ | |||
| Moisture Readability | 0.01％ | |||
| Dry Residual Range | 100.00％ to 0.00％ | |||
| Dry Residual Readability | 0.01％ | |||
| Temp Setting | 104 °F to 446 °F (40 ℃ to 230 ℃) By 33.8 °F (1 ℃) Step | |||
| Time Setting | 1 min to 99 min by 10 s | |||
| Number Of Storage | 20 | |||
| Number Of History | 20 | |||
| Heater | 220 V ±15％ 50 Hz / 110 V ±15％ 60 Hz / 400 W | |||
| Balance | Input: 220 V 50 Hz / 110 V 60 Hz Output: 9 V | |||
| Machine | Input: 220 V 50 Hz / 110 V 60 Hz Output: 24 V Dual drive | |||
| Operation Height | 10.83 in (275 mm) | |||
| The Chamber Height | 1.37 in (35 mm) | |||
| Display | 7 in touch panel | |||
| Interface | RS232/RJ45/USB… | |||
| Communication Mode | Cable | Wireless | Cable | Wireless |
| Rechargeable Battery | No | 10,000 mAh | No | 10,000 mAh |
| Indicator Dimension | 7.87 in x 2.95 in x 5.31 in (200 mm x 75 mm x 135 mm) | |||
| Pan Size Diameter | 3.45 in (90 mm) | |||
| Capacity | 0.24 lb (110 g) | |||
| Host Dimension | 8.46 in x 7.68 in x 16.34 in (215 mm x 195 mm x 415 mm) | |||
