Features

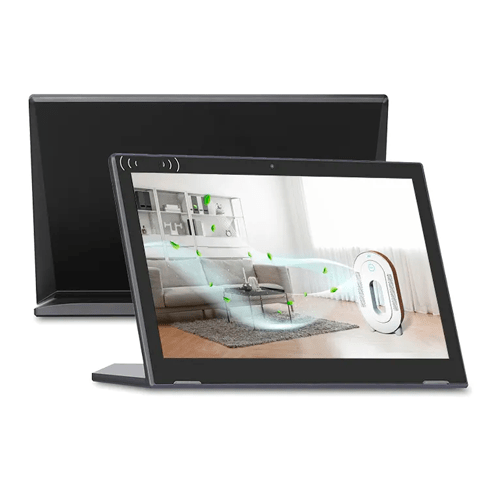

- L type, Desktop, thin tablet
- RK3288 Quad core
- 2 GB RAM, 16 GB ROM
- Android 1 OS
- 3 in (33.78 cm) IPS panel with 1920×1080 resolution
- RJ45 Ethernet 10 M or 100 M
- Front NFC function for option

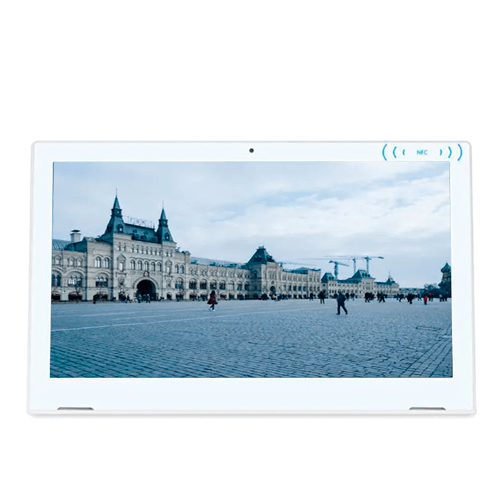

- White or Black color Option
- Drop resistance
Technical Specifications
| CPU | RK3288 Quad core A17 1.8 GHz |
| Internal memory | 16 GB |
| RAM | 2 GB |
| Operation system | Android 8.1 |
| Touch screen | 10-Point capacitive touch |
| Panel | 13.3 in (33.78 cm) LCD IPS panel |
| Resolution | 1920 pixels x 1080 pixels |
| Active area | 11.56 in x 6.50 in (293.76 mm (H) x 165.24 mm (V)) |
| Display mode | Normally black, IPS |
| Viewing angle | 85 or 85 or 85 or 85 (L/R/U/D) |
| Contrast ratio | 800 |
| Luminance | 250 cd/m2 |
| Aspect Ratio | 16:9 |
| Wi-Fi | 802.11b or g or n |
| Ethernet | 10 M or 100 M ethernet |
| Blutooth | Bluetooth 4.0 |
| Card slot | TF card |
| USB x 2 | USB Host |
| Micro-USB | Micro-USB OTG |
| H-D-M-I | H-D-M-I output |
| RJ45 | RJ45 |
| Serial port | USB for serial port |
| Power jack | DC power input |
| Earphone | 0.13 in (3.5 mm) earphone |
| Video format | MPEG-1, MPEG-2, MPEG-4, H.263, H.264, VC1, RV etc., support up to 4 K x 2 K (H.264) |
| Audio format | MP3 or WMA or AAC etc. |
| Photo | Jpeg |
| Battery | No (Bulk for option 4500 mAh or 7.4 V, working time 2 hrs) |
| Speaker | 2x 1 W |
| Camera | 5.0 M/P, Front camera with AF |
| MIC | Built-in MIC |
| Power consumption | 15 W |
| Working temp | 32 °F to 104 °F (0 °C to 40 °C) |
| Dimension | 12.95 in x 8.07 in x 4.56 in (32.9 cm x 20.5 cm x 11.6 cm) |
| Weight | 9.92 lb (4.50 kg) |
