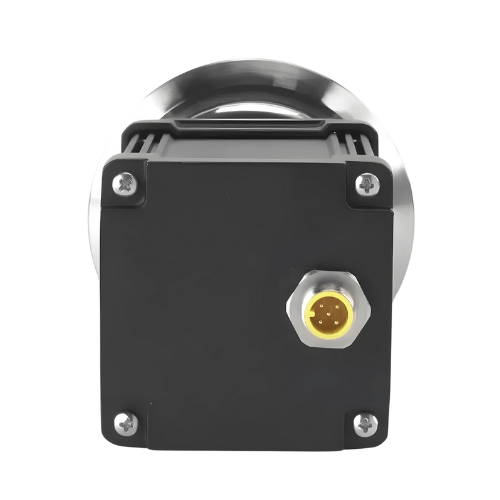

$Hospitality Enviro Tech Inline Process Refractometer - Image 2$

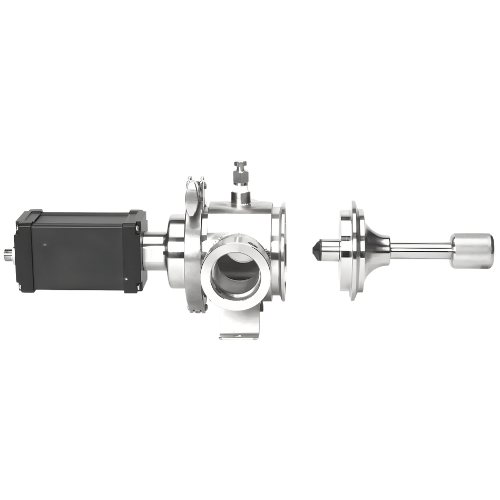

$Hospitality Enviro Tech Inline Process Refractometer - Image 3$

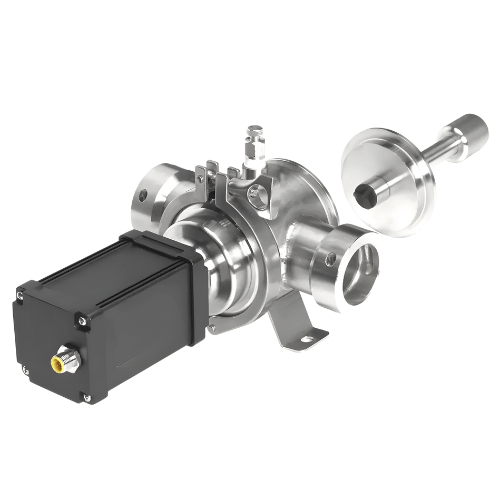

$Hospitality Enviro Tech Inline Process Refractometer - Image 4$

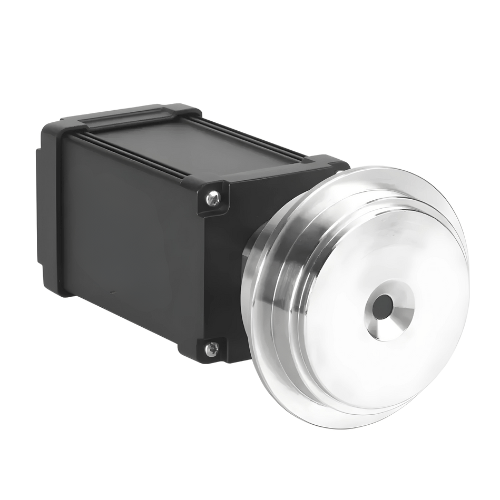

Hospitality Enviro Tech Inline Process Refractometer

Name: Hospitality Enviro Tech Inline Process Refractometer - Hospitality Enviro Tech
SKU: HETRR-206
Availability: InStock

This Inline Process Refractometer has a measure range of 0% to 53%, output of 4 mA to 20 mA + RS485 optional and power of 12 V DC to 24 V DC.

SKU: HETRR-206 Category: Sugar Content Meters

Technical Specifications

Measure Range	0 % to 53 %
Min Resolution Ratio	Brix is 0.1 % (Range for 15% & 53%)
Measurement Accuracy	Brix is ± 0.3 % (Standard)
Operating Current	≤ 200 mA
Display Menu	Refractive index (nD), Brix (%), Temperature (°C)
Output	4 mA to 20 mA + RS485 optional
Power	12 V DC to 24 V DC
Wetted Parts Material	Prism is sapphire, Prism stage is SS316L
Max Pressure	1 MPa
Protection Grade	IP 65
Process Connection	1 / 2 NPT, other size supply free adaptor
Recorder Output Cable	2.18 yd (2 m), 3.28 yd (3 m), 5.46 yd (5 m), 10.93 yd (10 m)
Temperature Sensor	Thin film platinum sensor
Measurement Temperature	32 °F to 185 °F (0 °C to 85 °C) (Automatic Temperature Compensation)
Environment Temperature	50 °F to 140 °F (10 °C to 60 °C)
Instrument Size	9.05 in x 6.69 in x 2.55 in (230 mm x 170 mm x 65 mm)
Weight	6.61 lb (3 kg)
