Overview

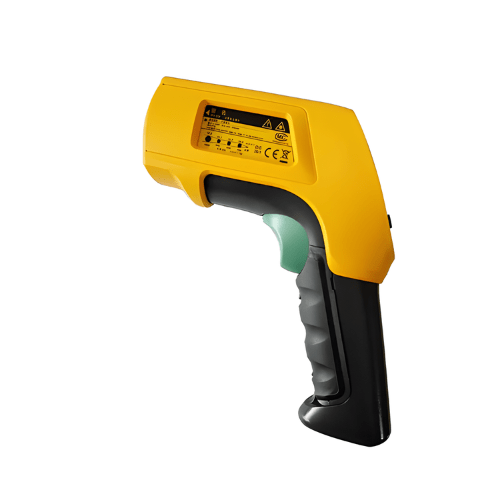

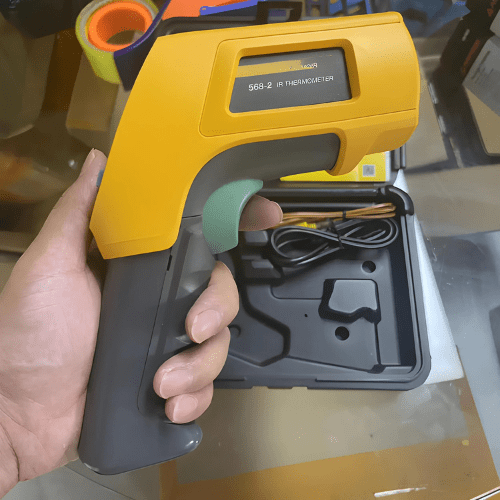

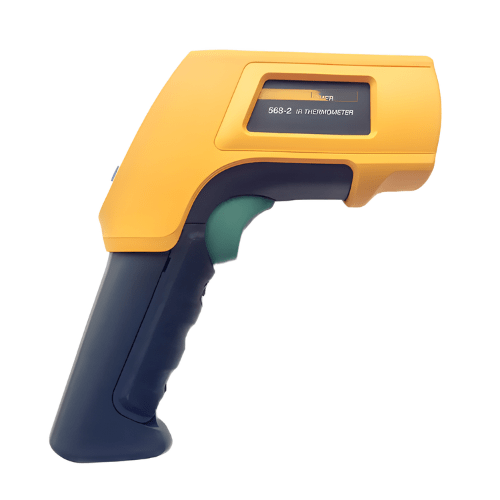

Fluke 566-2/568-2 infrared contact spot pyrometer Infrared and contact 2-in-1 thermometer with innovative dot matrix display.With a simple 3 button on-screen menu interface in 6 languages, the Fluke 566-2/568-2 digital laser thermometer makes complex measurements incredibly easy. With just a few button presses, you can quickly explore advanced features to adjust emissivity, initiate data logging, or turn alarms on and off. The Fluke 566-2/568-2 Contact and Non-Contact <>-in-<> Thermometer features a rugged, easy-to-use, user-friendly design that can easily handle demanding industrial, electrical, and mechanical environments. These tools far outperform other infrared thermometers (or pyrometers), allowing users to work more efficiently in a wider range of applications.
Features
- Measuring range: -35°C to 850°C (568-2) or -35°C to 750°C (566-2).
- Softkey buttons, dot matrix display for easy access to features.
- D:S ratio of 55:1 (568-2) or 35:1 (566-2) for versatile measurements.
- Compatible with standard mini-connector Type K thermocouples.
- Adjustable emissivity for confident measurement on various surfaces.
- Store up to 568 data points (568-2) or 566 data points (566-2).
- 2 levels of backlight brightness for different lighting conditions.
- Audible and visual alarms for exceeding set limits.
- Identify issues with minimum, maximum, average, and DIF capabilities.

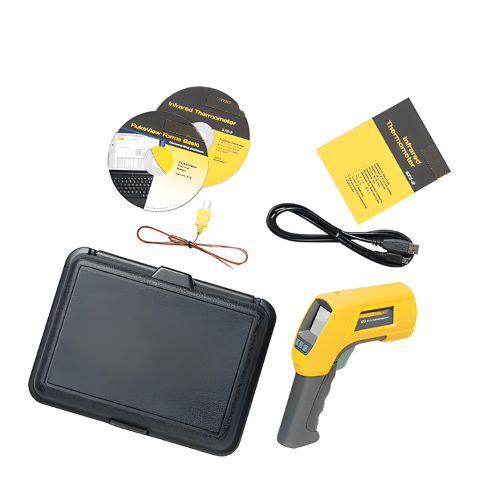

- Supplied Type K thermocouple bead probe for immediate measurements.
- 1% measurement accuracy ensures precision in equipment servicing.
- Multifunctional interface available in 6 languages.
Technical Specifications
| Display Resolution | 0.1 °F (0.1 °C) |
| Infrared Spectral Response | 8 µm to 14 µm |
| Infrared Response Time | <500 msec |
| Thermocouple Type-K Input Temperature Range | -454 °F to 2501 °F (-270 °C to 1372°C) |
| Thermocouple Type-K Input Accuracy | -454 to -40 (-270 °C to -40°C): ±(2 °F + 0.2°/1 °F) (+1 °C + 0.2°/1 °C) -40 to 2501.6°F (-40 to 1372°C): ±1% or 2°F (±1% or 1°C), whichever is greater |
| Distance to Measurement Spot Size | 55:1 |
| Laser Sighting | Single-point laser <1 mw output Class 2 (II) operation, 630 to 670 nm |
| Minimum Spot Size | 0.75″ (19 mm) |
| Emissivity Adjustment | By built-in table of common materials or digitally adjustable from 0.10 to 1.00 by 0.01 |
| Data Storage with Date/Time Stamp | 99 points |
| PC Interface and Cable | USB 2.0 and FlukeView Forms software |
| Power | 2 x AA/LR 6 Batteries |
| Battery Life | Laser and backlight on, 12 hours (used continuously) Laser and backlight off, 100 hours (used continuously) |
| Operating Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Storage Temperature | -40 °F to 140 °F (-20 °C to 60 °C) |
| Bead Thermocouple Type-K Range | -40 °F to 500 °F (-40 °C to 260 °C) |
| Bead Thermocouple Type-K Accuracy | ±2.0 °F (1.1 °C) from 32 °F to 500 °F (0 °C to 260 °C), typically within 2.0 °F (1.1 °C) from -40 °F to 32 °F (-40 °C to 0 °C) |
