Technical Specifications
| Measurement Range | 0.02 US Per Cm To 20 US Per Cm, With K=0.01 Electrode 0.2 US Per Cm To 200 US Per Cm, With K=0.1 Electrode 2.0 US Per Cm To 2000 US Per Cm, With K=1.0 Electrode 20 US Per Cm To 20000 US Per Cm, With K=10 Electrode |
| Screen Display | Backlight Type Large LCM Display |
| Analog Output | One Way 4 mA To 20 mA Isolation Protection Output |
| Digital Output | Modbus RS 485 Standard Communication Protocol |
| Power Supply | 100 V to 240 V AC, 50 HZ or 60 HZ |
| Relay Output | High Low, Delay Free Program Setting; Two Sets Of ON Or OFF Outputs 240 V AC Maximum Current 0.5 A |
| Installation | Wall, Disk, Hanging |

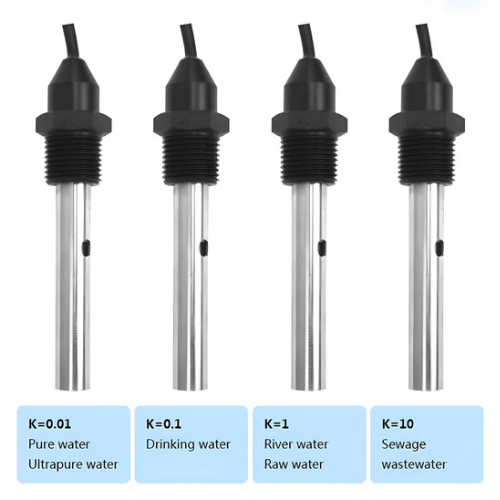

| Electrode | Constant 0.01 cm-1, 0.1 cm-1, 1.0 cm-1, 10.0 cm-1, Material Stainless Steel Temperature Compensation Element NTC 10 K Temperature Display Range: 32 °F To 212 °F (0 ℃ to 100 ℃), Resolution 0.18 °F (0.1 ℃) Medium Temperature 41 °F to 212 °F ( 5 ℃ to 100 ℃) Thread Size 1 Or 2 In Pipe Thread Medium Pressure: 0 To 0.5 Mpa |
| Temperature Compensation | Based On 77 °F (25 ℃), The Coefficient Can be Modified |
| Working Environment | Operating Temperature 32 °F To 140 °F (0 ℃ To 60 ℃) Relative Humidity ≤ 90 % |
| Storage Temperature | -4 °F to 158 °F (-20 ℃ to 70 ℃) |
| Overall Size | 3.78 In x 3.78 In x 5.12 in (96 mm x 96 mm x 130 mm) |
| Hole Size | 3.66 In x 3.66 in (93 mm x 93 mm) |
| Weight | 1.1 Lb (0.5 Kg) |
