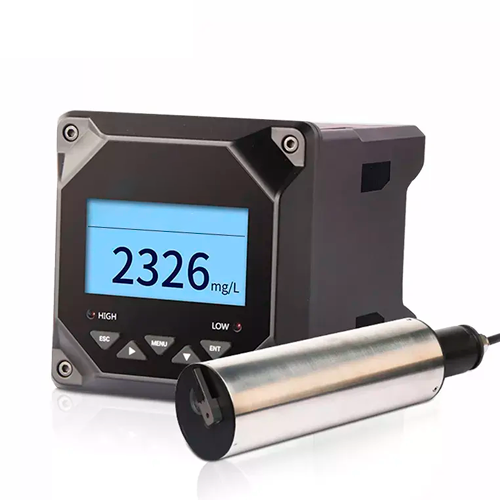

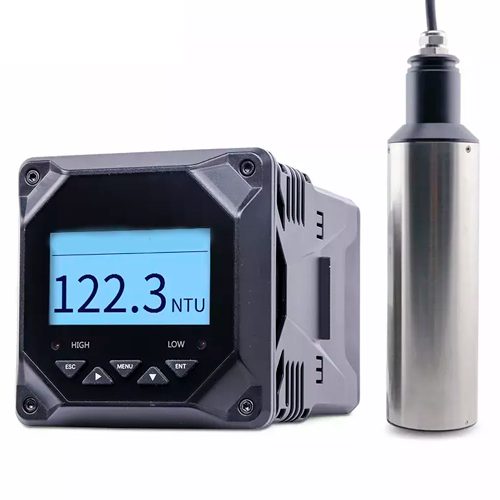

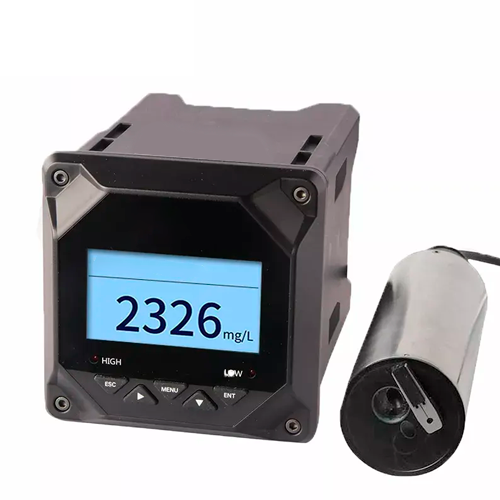

Technical Specification
| Measurement | Turbidity, MLSS concentration |
| Measuring range | 0.00 NTU to 4000 NTU, 0.001 mg/L to 20000 mg/L |
| Maximum loop resistance | 750 Ω |
| Accuracy | 0.1% FS |
| Type of output | 4 mA to 20 mA current transmitting output |
| Alarm relay | AC 250 V, 3 A |
| Ambient temperature | -5 °F to 130 °F (-20 °C to +55 °C) |
| Storage temperature | -20 °F to 160 °F (-30 °C to +70 °C) |
| Humidity | 10 % RH to 90% RH at 100 °F (40 °C) |
| Material | Body: PVC
O-ring: Fluorine rubber Cable: PVC |
| Waterproof grade | IP 68/ NEMA 6 P |
| Measuring range | Turbidity: 0.00 NTU/ MLSS to 4000 NTU/ MLSS, concentration: 0.1 mg/L to 20000 mg/L, 0.1 mg/L to 45000 mg/L, 0.1 mg/L to 120000 mg/L |
| Display accuracy | Turbidity: Less than ±2% of the measured value or ±0.1NTU, whichever is larger / MLSS concentration: less than ±5% of the measured value (depending on the homogeneity of the MLSS) |
| Velocity of flow | ≤2.5m/s, 8.2ft/s |
| Pressure range | ≤58.05 PSI (400 kPa) |
| Storage temperature | 5 °F to 149 °F (-15 ℃ to 65 ℃) |
| Ambient temperature for measurement | 32 °F to 113 °F (0 ℃ to 45 ℃) |
| Calibration | Calibration of sample, slope calibration |
| Cable length | 32.81 ft (10 m) standard cable, can be extended up to 328.08 ft (100 m) |
| Panel Front Size (mm) | 3.94 in x 3.94 in x 5.91 in (100 mm x 100 mm x 150 mm) |

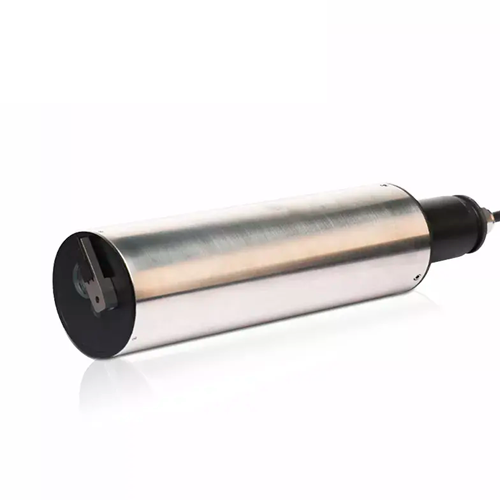

| Size | 2.36 in x 10.08 in (60 mm x 256 mm) |
| Weight | 3.64 lb (1.65 kg) |
