Overview

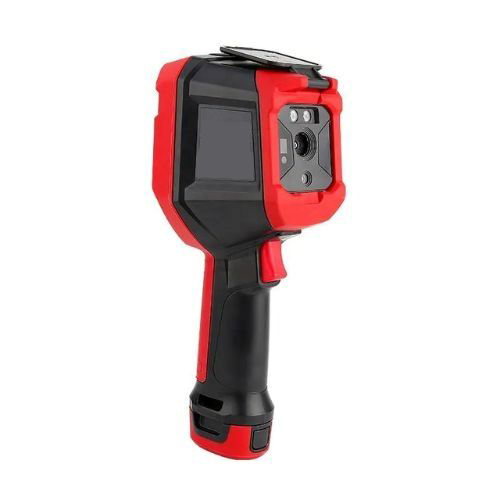

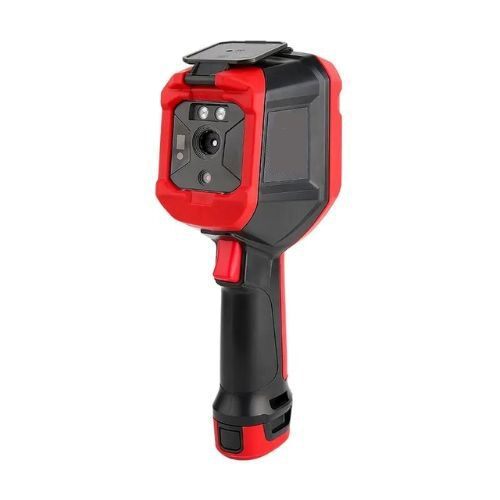

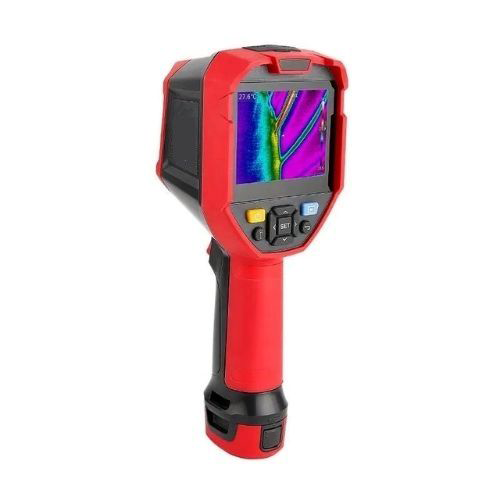

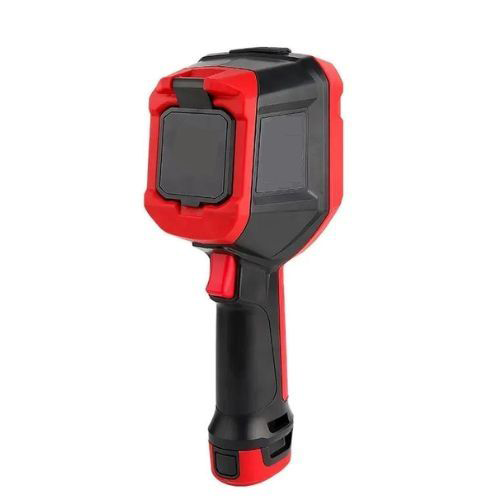

Hospitality Enviro Tech Industrial Thermal Imager – Replaceable Battery provide various functions compared with Classic and Echo series, such as flexible measurement presets, high resolution digital camera (2 Megapixel), Wi-Fi, Isotherm etc. The imager size is bigger which allows a bigger screen (3.5’’ IPS) for excellent display quality. Its replaceable battery modules allow the imager to have minimal down time, greatly improving productivity.
Features
- Infrared Resolution 256 x 192 to 320 x 240
- 2 Megapixel digital with 2x, 4x digital zoom
- Image blending and Picture in Picture
- Battery replaceable
- Interface Dust cover
- TF memory card interface
- Lens cap
- Type-C interface
Technical Specifications
| IR resolution | 320 x 240 pixel |
| Screen Display | 3.5” IPS |
| Field of view (FOV) | 56 degrees x 42degrees |
| Thermal sensitivity (NETD) | 65 mK |
| Spatial resolution (IFOV) | 3 mrad |
| Focus | Focus free |
| Frame rate | 9 Hz |
| Battery | Li-ion battery pack (5200 mAH) |
| Battery Type | Replaceable |
| Battery operating time | ≥ 4 hours |
| Palettes | 7 |
| Emissivity | Adjustable (0.01 to 0.99) |
| Measurement presets | Point x5, Line x1, Area x6 |
| Digital camera | 2 MP |
| Digital zoom | 2x, 4x |
| Image Model | Thermal, visible, blending, PiP |
| LED | √ |
| WiFi download photo | √ |
| ROI (eliminates interference) | √ |
| Isotherm | √ |
| Auto tracking for Lo/Hi temperature | √ |
| Alarm | √ |
| Storage | 16 G Micro SD Card |
| PC software | Analysis, Real-time display |
| Protection | IP 54 m / 2 m |
| Communication interface | Type-C |
| Standard accessories | Micro SD card, Type-C USB cable, manual, Li-ion battery pack |
| Standard individual packing | Kit Box |
| Measurement accuracy | 28.4 °F to 35.6 °F (± 2 ℃) or ± 2 % whichever is greater |
| Object Temperature range | – 40 °F to 752 °F (- 40 °C to 400 ℃) |
| Product net size | 10.23 in x 3.81 in x 3.89 in (26 cm x 9.7 cm x 9.9 cm) |
| Product net weight | 22.22 oz (630 g) |
