| Input voltage |
85 V AC to 265 V AC or DC 24 V |
| Resolution |
32.018 °F (0.01 °C) |
| Range |
23 °F to 4172 °F (-5 °C to 2300 °C) |
| Channel Quantity |
1 channel to 64 channel |
| Accuracy |
≤±0.2% FS |
| Thermocouple |
K, E, R, B, N, T, E, J, S, and WRE5 – 26 |
| Thermal |
PT 100, PT 1000 |
| Current |
4 mA to 20 mA, 0 mA to 20 mA |
| Voltage |
0 V to 5 V, 0 V to 10 V |
| Usage |
Industrial indoor outdoor |
| Display |

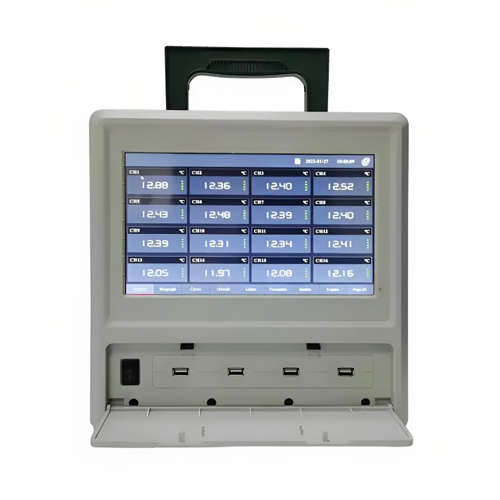

7 in (177.8 mm) TFT colour LCD screen |
| Feature |
24 hours temperature measurement |
| Application |
Industrial temperature measuring |
| Time interval |
1 s to 19999 s self-sufficient setting |
| AC or DC Power supply |
85 V AC to 265 V AC or 24 V DC ± 10% |
| Record capacity |
6 days (64 channels, 1 s record interval) |
| Recording method |
Loop record |
| Relay |
1718 8 channels normally open relay module 250 V AC or 3 A |
| Alarm type |
Upper and lower alarm, 4 each channel |
| Power supply |
1 channel 24 V DC power supply |
| Communication |
Standard RS 232 C (Optional RS 485, USB Communication, Ethernet, and GPRS wireless communication etc) |
| Case Material |
ABS |
| Working humidity |
Lower than 85% R.H |
| Storage humidity |
Lower than 95% R.H |
| Working temperature |
-4 °F to 122 °F (-20 ℃ to 50 ℃) |
| Storage Temperature |
32 °F to 122 °F (0 ℃ to 50 ℃) |
| Dimension |
11.33 in × 11.33 in × 7.87 in (288 mm × 288 mm × 200 mm) |
| Installation hole dimension |
10.94 in × 10.94 in (278 mm × 278 mm) |
