Technical Specifications
| Input channels | Up to 16 channels |
| Power supply | 100 V AC to 240 V AC or 100 V DC to 240 V DC |
| Accuracy | ± (0.2 % FS+1) digit |
| Various display | Digit, bar graph, curve and chart |
| Communication | Standard mod bus RTU communication protocol |
| Linear current | 0 mA to 20 mA |
| Input signals | K, S, E, J, T, B, N, R, WRe526 and WRe523 |
| RTD | PT100, CU50, CU100 |
| Input channel number | Maximum 16 Channels Input, each channel can be configurable flexibly and universal input |

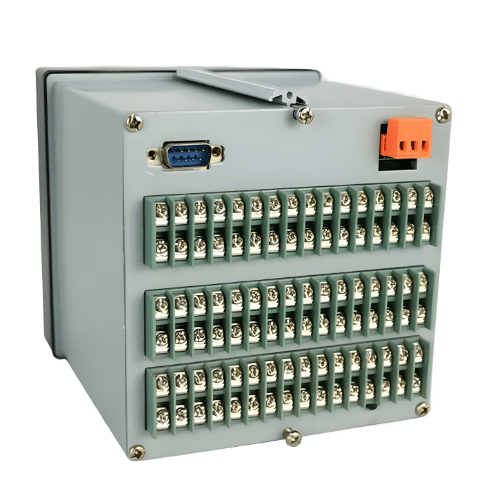

| Output | 16 relay output,6 re transmission output, RS485 communication and RS232 printing port |
| Data Memory | Big capacity FLASH memory, up to 10 years for long time memory even power off |
| Data Save | 8 MB memory capacity with big capacity TF card expedition |
| Data Transfer | It transferred by USB pen drive, data trend display printing, data checking and export to excel formal for further analysis |
| Communication | RS 485 communication, Ethernet communication port, TCP or IP protocol and universal standard MOD BUS-RUT protocol can be configurable with HMI. DCS, MCGS |
| Flow totalize | Flow totalize function, can be with 5 optional temperature and pressure compensation |

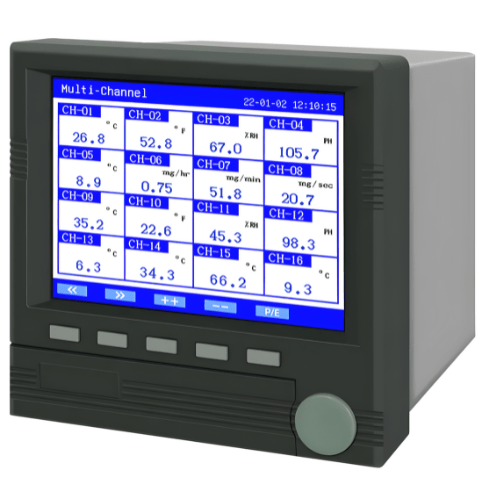

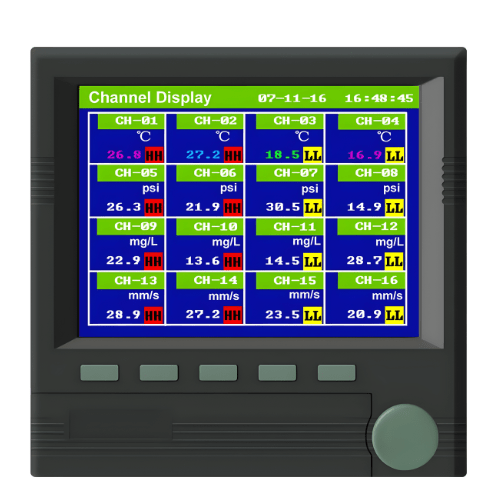

| True Color Display | 5.6 in TFT LCD screen display, wide view, high brightness and high resolution |
| Easy Operation | With 5 keys for screen display, parameters setting all operation and easy user-friendly |
| Frequency | 47 Hz to 63 Hz |
| Power consumption | 5 V AC |
| Dimension | 5.66 in × 5.66 in × 7.08 in (144 mm × 144 mm × 180 mm) |
