Overview

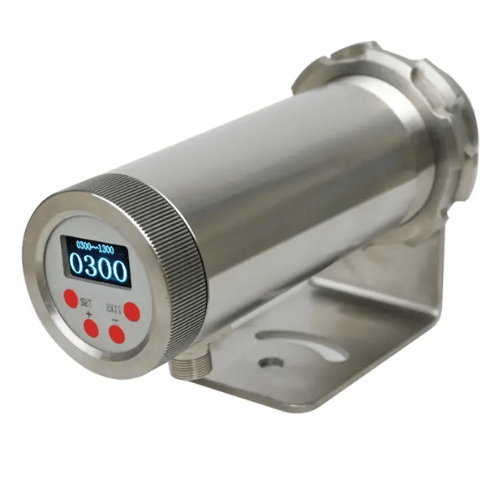

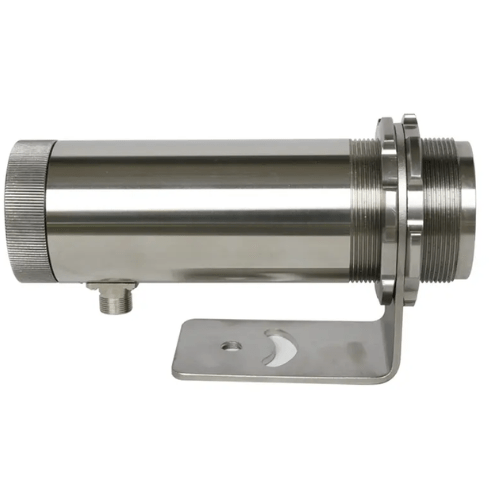

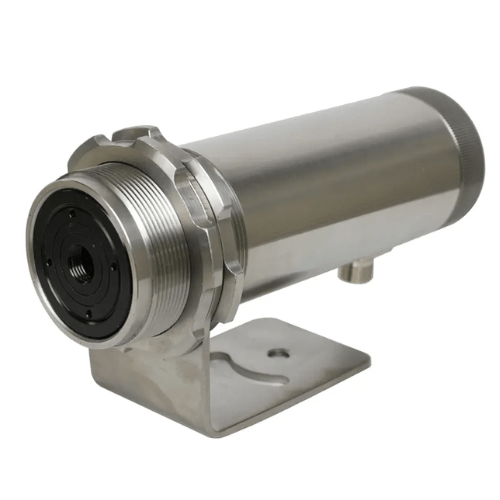

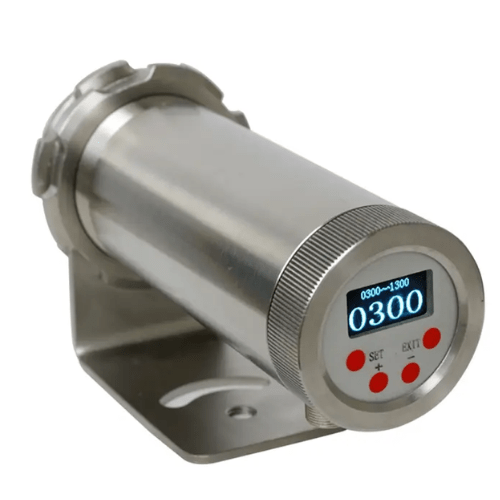

Hospitality Enviro Tech medium-high temperature infrared thermometer T-IF102 is a reliable instrument designed for measuring surface temperature without direct contact. Using the principle of measuring thermal radiation emitted by an object, this infrared thermometer accurately determines the temperature from a distance. It is particularly useful in areas where traditional sensors may not be suitable, such as hard-to-reach places or surfaces with moving parts. The T-IF102 is ideal for applications where contact with a sensor might damage the surface or when temperatures exceed the recommended range for direct contact sensors, as seen in freshly sprayed powder coatings.
Technical Specifications
| Measure Accuracy | ±0.5% |
| Measuring Range | 572 °F to 5432 °F (300 ℃ to 3000 ℃) |
| Environment Temp | 14 °F to 131 °F (−10 ℃ to 55 ℃) |
| Measuring Distance | 0.2 m to 5 m |
| Min-Measure Dial | 0.0590 in (1.5 mm) |
| Resolution | 33.8 °F (1 ℃) |
| Relative Humidity | 10 % to 85 % (No condensation) |
| Response Time | 20ms (95%) |
| Material | Stainless Steel |
| Distance Coefficient | 50:1 |
| Output Signal | 4 mA to 20 mA (0 mA to 20 mA)/ RS 485 |
| Weight | 1.1797 lb (0.535 kg) |
