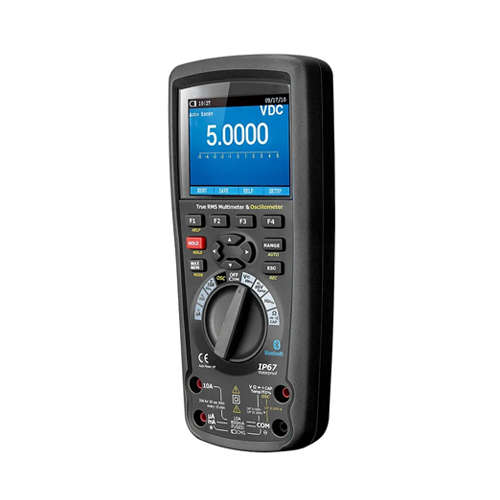

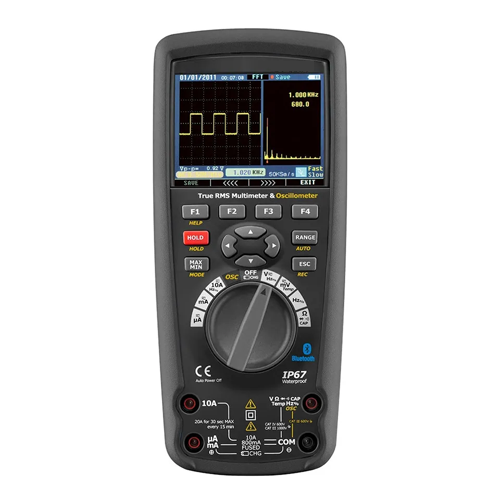

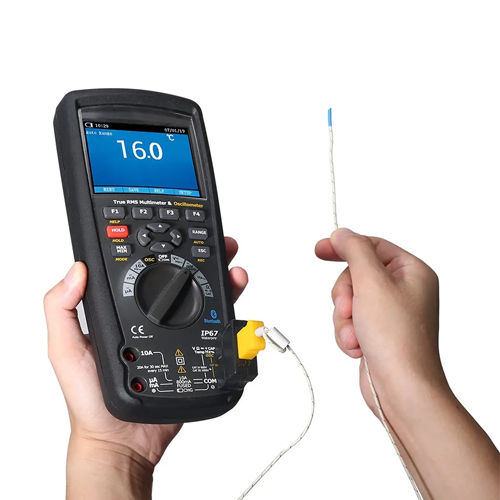

Technical Specification
| Display Size | 3.5 in (88.9 mm) color LCD; 320 x 240 pixels |
| Bandwidth | 20 MHz |
| Real-time Sample Rate | 50 MS/s |
| Risetime | 10 ns |
| Channels | 1 |
| Vertical Sensitivity | 50 mV to 200 V/div |
| Vertical Resolution | 8 bits |
| Trigger Mode | Free Run, falling edge, rising edge |
| Trigger Source | Internal |
| Trigger Coupling | AC/DC |
| Input Impedance | 1 MΩ/200 pF |
| Max Input Voltage | 1000 V (peak) |
| Cursor Measurement | Voltage and time/ Frequency |
| PC Interface | Bluetooth |
| Power Supply | 6 hours Li-ion rechargeable battery; AC adaptor/charger |
| Size (H x W x D) | 8.66 in x 3.78 in x 2.36 in (220 mm x 96 mm x 60 mm) |
| Weight | 1.39 lb (631g) |
