Overview

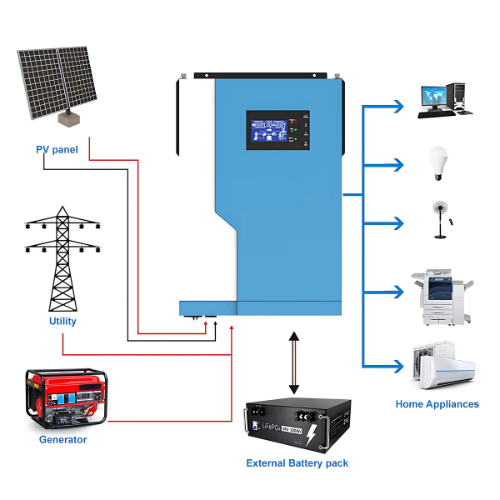

Hospitality Enviro Tech Hybrid Solar Inverter Pure Sine Wave is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features
- High efficiency pure sine wave inverter (PF=1)
- Wide PV input range (120VDC-500VDC) 100A MPPT SCC
- Intelligent functionality enables utility and solar input periodization
- Wide utility input range (90Vac-280Vac) for unreliable gird even In the most challenging environments
- Field serviceable with replacement boards and spare parts
- Monitor, troubleshoot or communication with RS232/RS485.
- Working with batteries
- Anti-dusk kit for harsh environment(optional)
- PV and electricity complementary
- WiFi Monitoring Function (optional)
- Use with lithium batteries
Technical Specifications
| Input Voltage | 220 V to 240 V |
| Output Voltage | 110 V to 120 V
220 V to 230 V |
| Output Current | 0 A to 80 A |
| Output Frequency | 50 Hz to 60 Hz |
| Transfer Time | 10 Minutes to 20 Minutes |
| Open Circuit Voltage | 120 V to 450 VDC |
| Battery Type | Lead acid or lithium battery |
| Size | 3.93 in x 11.8 in x 17.3 in (100 mm x 300 mm x 440 mm) |
| Weight | 26.5 lbs (12 kg) |
