| Rated Voltage |
250 V, 500 V, 1000 V, 2500 V, 5000 V, 10 KV（ES3035E+） |
| Test Voltage |
rated voltage x (1 ± 10%） |
| Insulation Resistance Range |
0.01 MΩ to 2000 GΩ |
| DC Voltage Range |
0 V to 1000 V |
| AC Voltage Range |
0 V to 750 V |
| Output Short-circuits Current |
≥5 mA (10 KV) |
| Absorption Ratio and Polarization Index Measurement |
Have |
| Power Supply |
12.6 V rechargeable battery |
| Backlight |
Controllable gray screen backlight, suitable for use in dim places |
| Display Mode |
4-bit large LCD display, gray screen backlight |
| LCD Display Size |
4.25 in x 2.56 in (108 mm × 65 mm) |
| USB Interface |
With USB interface, software monitoring, storage data can be uploaded to the computer, save the print |

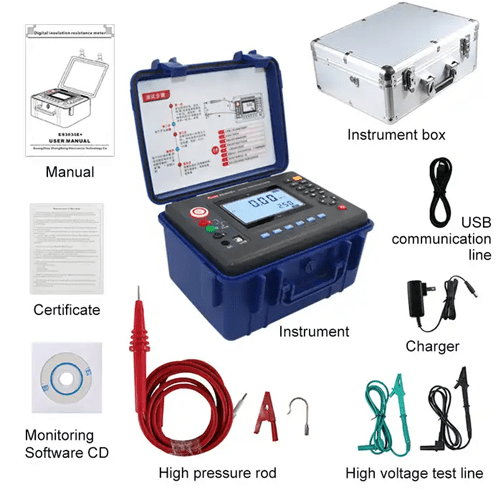

| Communication Line |
USB communication line 1PC |
| Test Line |
High voltage robs red 3 m, high voltage test line black 1.5 m, green 1.5 m |
| Data Storage |
500 groups, “FULL” symbol indicates that storage is full |
| Data Review |
Data review function “MR” symbol display |
| Overflow Display |
Exceed measurement range overflow function “OL” symbol display |
| Alarm Function |
Alarm when the measured value smaller than the alarm setting value |
| Power Consumption |
Standby 30 mA Max (backlight off), turn on backlight 42 mA Max, measure：300 mA Max (backlight off) |
| Battery Voltage |
When the battery voltage is low, low battery symbol “” will display |
| Automatic Shut-down |
automatic shutdown after 15 minutes boot |

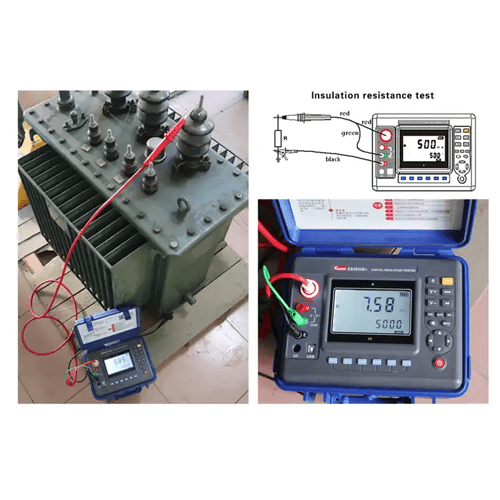

| Insulation Resistance |
≥50 MΩ (between Measuring line and housing) |
| Voltage Withstands |
AC3 kV or 50 Hz 1min |
| Working Temperature and Humidity |
14 ℉ to 122 ℉ (-10 ℃ to +50 ℃) <85%RH |
| Storage Temperature and Humidity |
5 ℉ to 131 ℉ (-15 ℃ to +55 ℃) <90%RH |
| Suitable For Safety Regulations |
IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529(IP54) pollution grade 2, CAT Ⅲ 300V |
| Instrument Size |
10.91 in x 8.96 in x 6.02 in (277.2 mm × 227.5 mm × 153 mm) |
| Instrument Weight |
6.06 lb (2.75 kg) (including battery) |
