Overview
Hospitality Enviro Tech Withstand Voltage Tester of Meiruike Is the Measurement Instrument for Compressive Strength, It Mainly Used for Insulation Leakage Safety Test of Product. It Can Test the Electrical Safety Performance Index off Breakdown Voltage, Leakage Current of Which All Kind of thee Measured Object Intuitive, Accurate and Fast, And Can Be Used for Testing the Components and Overall Performance as a High Voltage Source.
Features
- The alarm current value can be preset continuously and arbitrarily
- The test time is displayed by a three-digit tube
- Use high-brightness LED digital tube display test
- The output voltage is regulated by a voltage regulator
- Equipped with signal input and output interface required by PLC
Technical Specifications
| The output voltage | AC: 0 KV to 20 KV DC: 0 KV to 20 KV |
| Output current | 0 to 2/20 mA |
| Test accuracy | +/-5% |
| Testing time | 0.0s to 999 s |
| Transformer capacity | 400 VA |
| PLC interface | optional |
| Power requirement | AC 220 V +/- 10% |
| Weight | 77.16 lb (35 kg) |

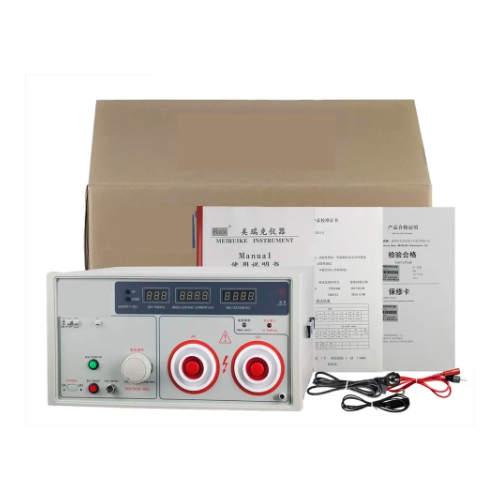

| Accessories | High voltage test wire, ground wire |
