Overview

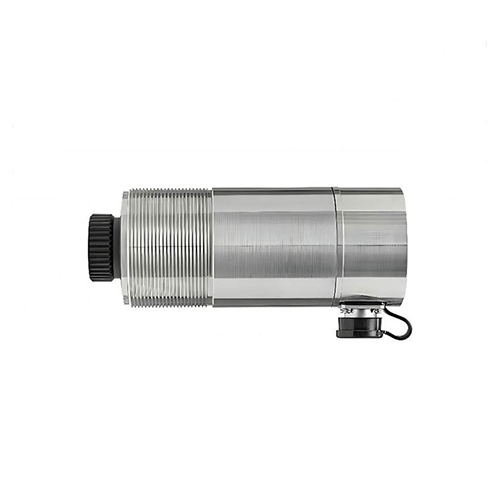

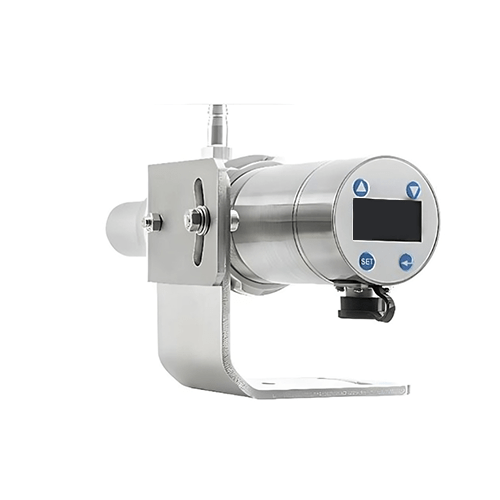

Hospitality Enviro Tech high temperature infrared thermometer has a strong shape.It use the manual adjustable focal lens, achromatic lens, high reliability circuit design (low temperature drift, design of fully digital measurement, high integration SOC chip application, visualize, OLED) interface and software design(ambient temperature compensation and real-time signal processing, abnormal signal processing, all kinds of application environment of software code optimization). These special designs allow the MARS range of one color tharmometer to be used for a variety of demanding industrial applications and precise temperature controls.
Features
- Temperature measurement accuracy up to 0.5%
- Repeat accuracy 2 ºC, Resolution 0. 1 ºC
- Response time 5ms to 99.99 s adjustable
- Manual adjustable focus lens, Standard focus distance 0.35 m to infinity
- Near focus distance 0.2 m to 0.5 m adjustable
- Detector with PID constant control, with full-range temperature
- Compensation, avoiding ambient temperature on measuring accuracy
- Use industrial OLED screen as display interface
- With friendly man-machine interface
- Rich external interface: programmable 4 kinds of analog output options, 1 channel alarm output, 1 channel level output and 1 channel RS 485 communication interface
- Special design narrow band infrared color filter, to minimize detector’s emissivity variation
- The design of hardware and software watchdog and hardware EMI filtering can improve the system stability
- Resistance to 2500 VDC pulse group interference
- Support thermometer bus cascade up to 26 sets, Via PC realize networked control
Technical Specifications
| Measuring Range(ºc) | 1112 °F to 2912 °F (600 °C to 1600 °C) |
| Detector | Si (silicon photocell) |
| Wavelength | 0.85 um to 1.1 μm |
| Distance Coefficient | Distance Coefficient |
| Measuring Distance | Standard focus distance 13.5 in (35 mm) to infinity adjustable; near focus distance 5.9 in to 11.9 in (15 mm to 5 mm) adjustable |
| Resolution | 32.18 F (0.1 ºC) |
| Measuring Accuracy | ±0.5% T (T is measured value) |
| Response Time | Fastest 5 ms, 5 ms to 99.99 s adjustable |
| Power Supply | DC 20 V to 30 V Power consumption |
| Ip Rate | IP 65 |
