Overview

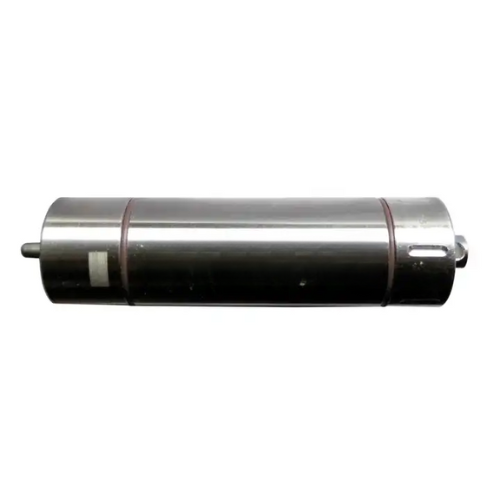

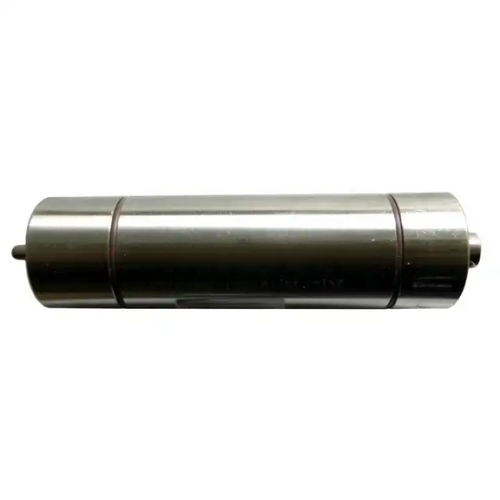

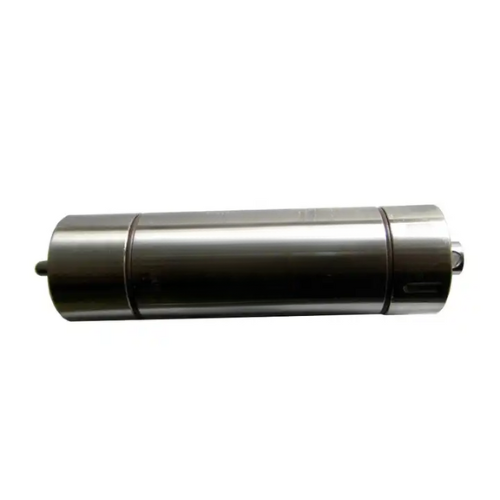

Hospitality Enviro Tech high temperature data logger is especially designed for measuring and recording temperature with accuracy on occasions like validating the dye liquor temperature in dyeing machines. Through precise measuring and recording, you can get the practical temperature data and curve during dyeing process so as to better help enterprises improve quality management. This stainless-steel device is submersible. To use, simply place it in the high temperature and high-pressure liquid, then use the software to start, stop and download the logger. Graphical, tabular and statistical data is provided for analysis and can also be exported to Excel/Word automatically.
Features
- Miniature & Self-contained
- Rugged water-proof housing
- Rigid external length probe
- Capable of quicker response rate than built-in probe
- User replaceable battery
- Large storage capacity
- Can store up to 32, 130 readings
- USB connection, strong compatibility
- Real-time temperature acquisition
- Monitoring and alarming function
- Data can be exported to Excel, Word and saved permanently
- Battery life indicator
Technical Specifications
| Sensor | Semiconductor |
| Data capacity | 32, 130 readings |
| Reading rate | 1 reading every second up to 1 reading every 7 days, chosen by the user |
| Real time recording | Used with PC to monitor and record data in real time |
| Calibration | Digital calibration through software |
| Data format | Date and time stamped ºC, ºF, K |
| Time accuracy | ±1 minute, month at 68 °F (20 ºC) |
| Computer interface | USB |
| Software | Logview5 |
| Operating system | Windows 2K, XP, Vista, 7 |
| Battery type | 3.6 V High temperature lithium battery user replaceable |
| Battery life | 2 years typical |
| Housing material | 316 Stainless Steel |
| Temperature resolution | 32.018 °F (0.01 ºC) |
| Temperature accuracy | ±32.9 °F (±0.5 ºC) |
| Measurement range | -122 °F to 302 °F (-50 ºC to 150 ºC) |
| Operating environment | -122 °F to 284 °F (-50 ºC to 140 ºC) |
| Dimension | 0.98 in x 3.93 in (25 mm × 100 mm) |
| Weight of high temperature data logger | 0.99 lb. (450 g) |
