Overview

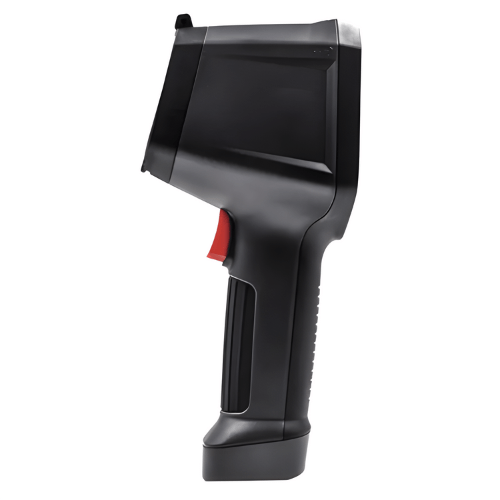

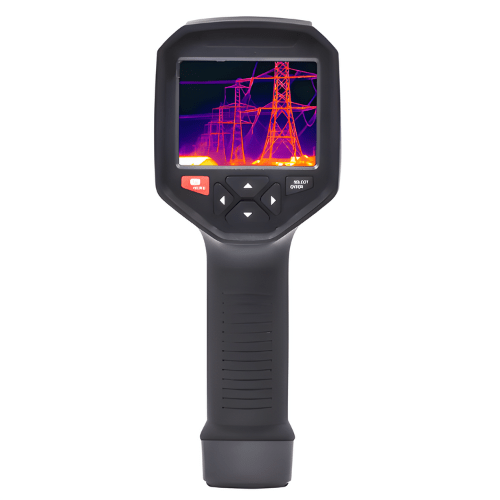

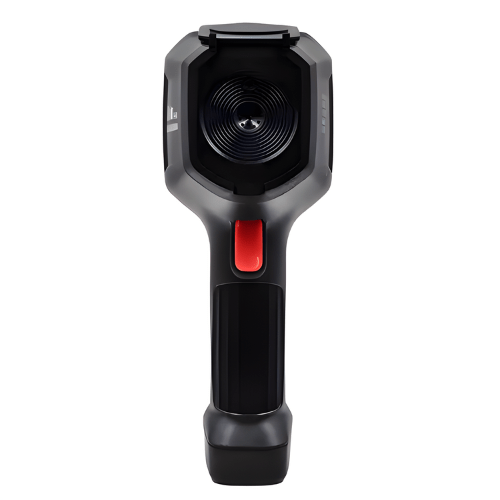

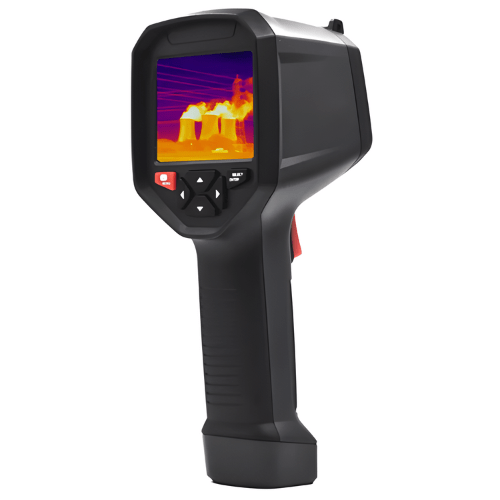

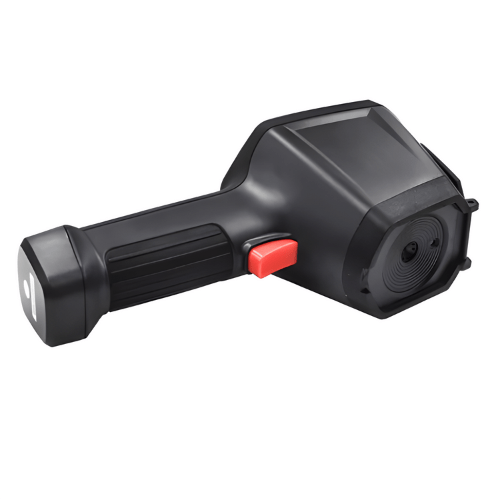

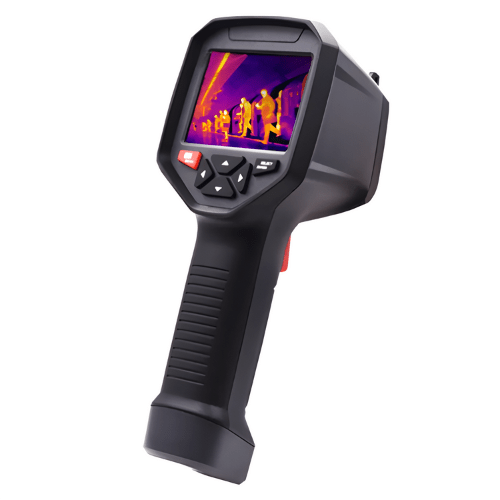

Hospitality Enviro Tech high resolution thermal imaging camera adapter can present color thermal imaging of the target area through touch control in real time thermal imaging images, while other areas are displayed black and white thermal imaging.
Features
- Visible light display camera
- Multiband dynamic imaging
- Include reporting and analysis software
- Continuous operation for more than 4 hours
- Measurement temperature –40 °F to 1112 °F
Technical Specifications
| Pixel | 320 x 240 |
| Thermal Sensitivity | 32.1 °F (0.07 °C) |
| Wavelength Range | 8 μm to 14 μm |
| Spatial Resolution | 1.13 mrad |
| LCD Resolution | 640 X 480 pixel |
| Thermal Image Frame Rate | 9Hz |
| Field of View Angle/Minimum Distance | 28.4 ° x 21.4 ° to 0.5 in (13 mm) |
| Temperature Measurement Range | -4 °F to 842 °F (-20 °C to 450 °C) |
| Size | 10.07 in X 3.8 in X 5.1 in (256 mm X 97.2 mm X 128.9 mm) |
| Weight | ≤ 2.1 lb. (≤ 950 g) |
