Overview

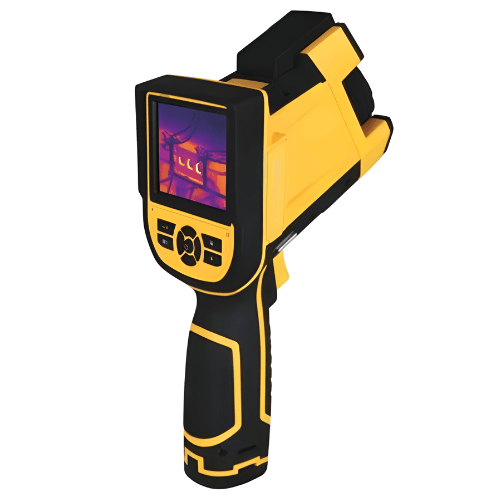

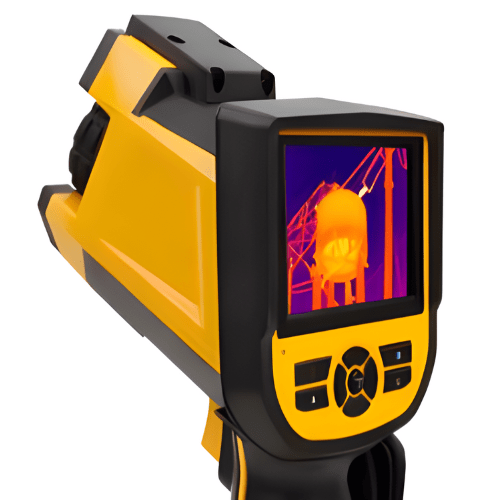

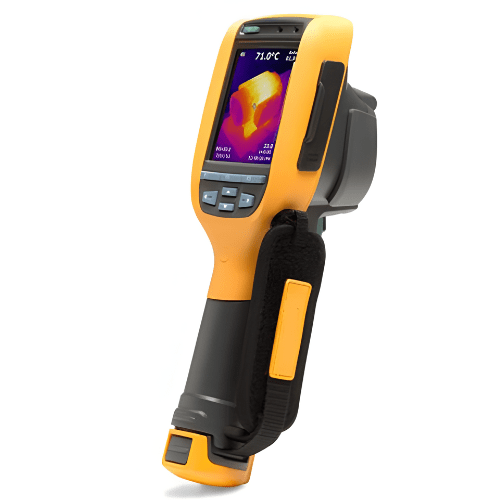

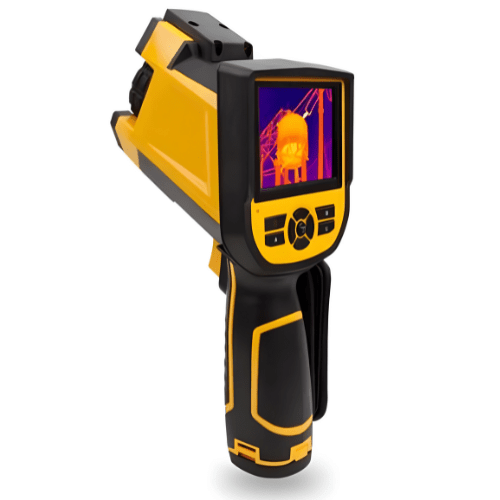

Hospitality Enviro Tech high resolution infrared rescue thermometer imaging system can be the human eye cannot see the infrared radiation energy converted to electrical signals, and to prepare a different color to express different temperature distribution of visual images show. These visual data signals can assist you in finding the abnormal temperature, which can be found the potential problems of the equipment.
Features
- 160 x 120 uncool FPA detector
- With temperature measurement function
- Unique fire-control color palette
- Apply to fire rescue
- We are the manufacturer, the price is competitive
- Portable, small size, lightweight
- Finding people and identify location in fireplace
- Best after sales service
- We are the manufacturer, we have price advantage
Technical Specifications
| Array Size | 160-pixel x 120 pixel |
| Field Of View Or Min Focus Distance | 30° x 22.5° |
| Spatial Resolution | 3.3 mrad |
| Frame Frequency | 50 Hz |
| Effective Distance | ≥50 m |
| Spectral Range | 8 um x 14 um |
| Start-Up Time | ≤25 s 86 °F (30 °C) |
| LCD | 3.5″ TFT LCD, 640×480 |
| Temperature Ranges | -4 °F to 1112 °F (-20 °C to 600 °C) |
| Battery Operating Time | 2 hrs |
| Battery Recharge Time | ≤2 hrs |
| Drop Test | 1 m |
| Operating Temperature | 5 °F to 122 °F (-15 °C to 50 °C) |
| Short Time Operating Temperature | 122 °F to 500 °F (50 °C to 260 °C) |
| Storage Temperature | -40 °F to 158 °F (-40 °C to 70 °C) |
| Dimension | 7.48 in x 5.03 in x 10.74 (190 mm x 128 mm x 273 mm) |
| Weight | 2.86 lb (1.3 kg) |
