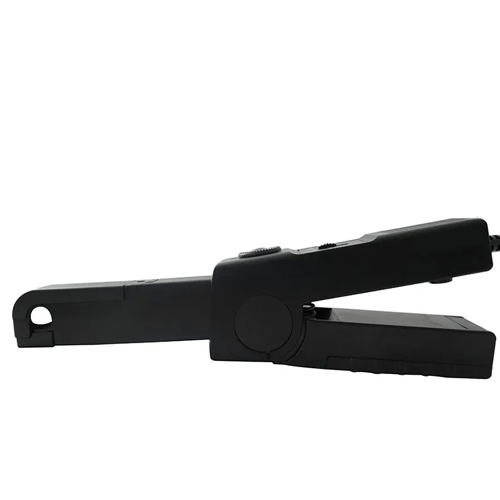

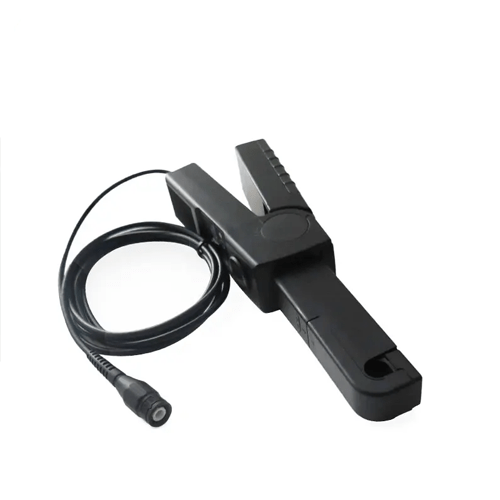

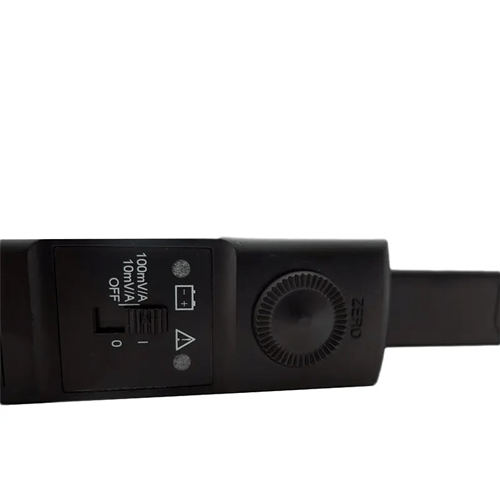

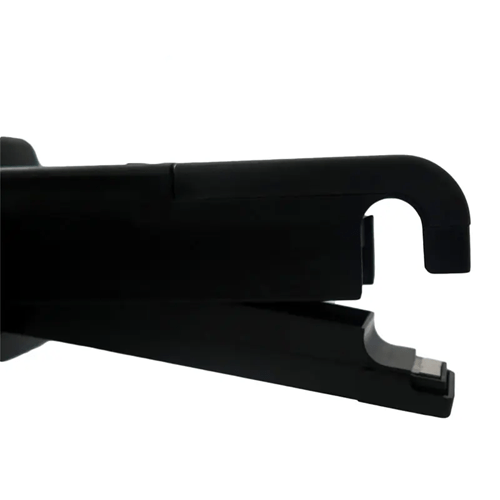

Hospitality Enviro Tech High Performance Current Probe Clamp

This High-Performance Current Probe Clamp has current range of 50 mA to 10 A peak value, error of output signal of 3% + 5 mV and battery of 9 V alkaline.

Technical Specifications

Current Range	50 mA to 10 A peak value
Range Sensitivity	100 mV/A
Error Of Output Signal	3% + 5 mV
Frequency Range	DC-100 KHz Amplitude frequency characteristic
Phase Shift	DC to 65 Hz: < 1.5°
Phase Frequency Characteristic	Reference Figure 4
Load Characteristics	1 MO < 100 pF
Insertion Impedance	0.01 Q
Noise	6 mV or 600 uv
Conversion Rate	0.3 V/us 20 mV/ us
Rise Fall Time	< 3.5 US
Transient Response	Reference Figure 5
Fang Bo Response	Reference Figure 6 (50 Hz/200 mA) Figure 7 (1 KHz/200 mA) Figure 8 (10 KHz/200 mA)
Working Voltage	Maximum 600 Vrms
Common Mode Voltage	Maximum 600 Vrms
Battery	9 V Alkaline battery
Low Battery Indication	When 6.5 V, LED is green otherwise close
Overload Indication	Red LED indicates that the measuring current is too large to change the measuring range
Size	9.09 in × 2.63 in × 1.14 in (231 mm x 67 mm x 29 mm)
