Technical Specifications

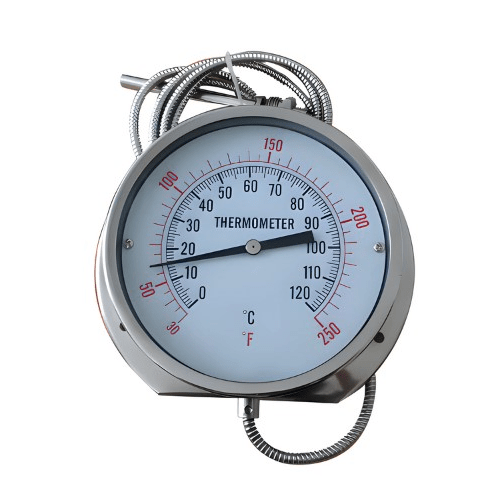

| Dial Size | 5.90 in (150 mm) |
| Lens | Glass |
| Bezel | SS 304, detachable |
| Pointer | Aluminum |
| Stem OD | 0.39 in (10 mm) |
| Stem Length | 5.90 in (150 mm) |

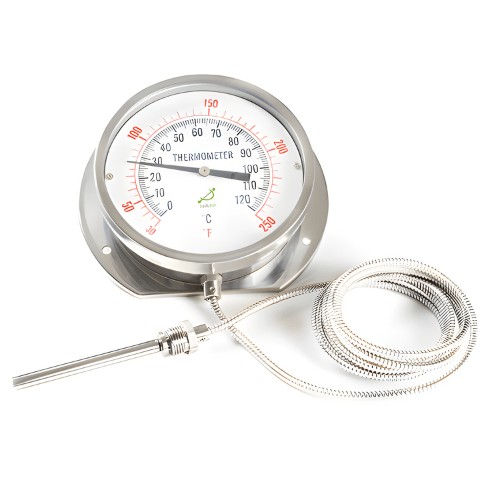

| Capillary length | 118.1 in (3000 mm) (Customized) |

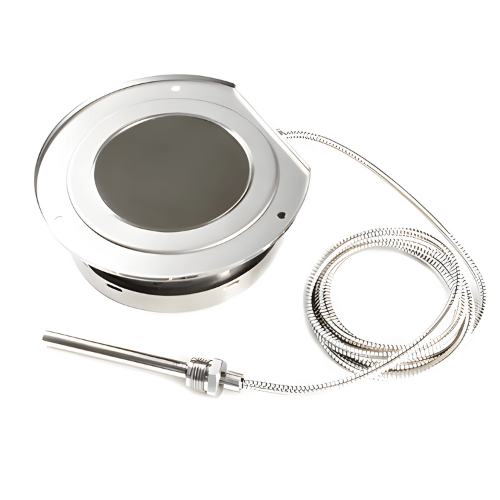

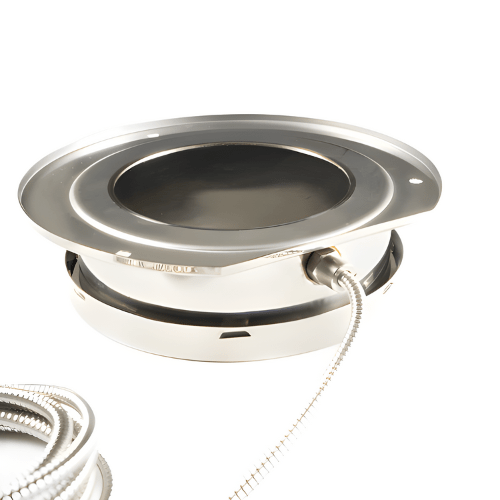

| Connection | Bottom connection, Rear flange |
| Accuracy | ± 2 % |
| Range | 32 ℉ to 248 ℉ (0 °C to 120 °C) |
| Oil filled | Available |
| Packaging | Shakeproof |
| Enclosure Rating | IP 65 |
| Field | The remote reading, Shockproof requirements, refrigeration plant, marine machinery etc. |
| Thread | ½ in (12.7 mm) NPT Sliding |
| Specification | 6 in (152.4 mm) Dial |
