Overview

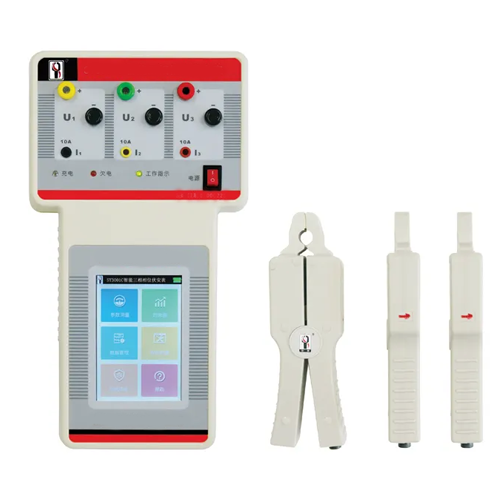

Hospitality Enviro Tech handheld voltage harmonics meter and tester has the following advantages: fundamental phase measurement endows it with strong anti-interference ability, displays three-phase voltage and current waveform in real time, 2 to 50 times harmonic ratio and histogram and analyzes power quality, equipped with Bluetooth and USB interface, more functions can be expanded by using the online APP. It is a new generation of instruments for field inspection of secondary circuits in electric energy metering and relay protection of power systems. It is also widely used in electrical equipment manufacturing, petrochemical industry, iron and steel metallurgy, railway electrification, scientific research and teaching and other departments.
Features
- 3-way voltage and 3-way current all isolated from each other
- Supports three-phase four-wire and three-phase three-wire
- True color TFT display, touch screen
- Customizable and true color vector diagram is clear
- It can display the waveform of three-phase voltage and current in real time
- It has a 4G TF card
- It supports software calibration
- It has good stability and small annual variation
Technical Specifications
| Voltage range | 20 V / 200 V / 500 V |
| Voltage resolution | 0.01 V / 0.1 V / 1 V |
| Voltage accuracy | ±0.2% FS |
| Current range | 200 mA / 2A / 10A |
| Current resolution | 0.1 mA / 0.001 A / 0.01 A |
| Current accuracy | ±0.3% RD ±0.2% FS |
| Frequency range | 45 Hz to 65 Hz |
| Frequency resolution | 0.05 Hz |
| Phase range | 0° to 360° |
| Phase resolution | 0.1° |
| Phase accuracy | ±1.0° |
| Active power factor range | -1.0000 to 1.0000 |
| Active power factor resolution | 0.0001 |
| Current | 5 mA to 10 A |
| Voltage | 3 V to 500 V |
| AC response | True RMS |
| Dimension | 9.05 in x 4.92 in x 1.69 in (230 mm x 125 mm x 43 mm) |
| Weight | 1.10 lb (500 g) battery included |
