Overview
This Handheld Thermistor Data Logger has a power drive of 8.5 V to 24 V DC, a 32 GB flash memory, and power consumption of 36 V A or less.
Features
- Domestic high precision data acquisition recorder
- Support various signal input
- 32 G memory, U disk two storage methods
- Up to 5 ms sampling
- Up to 1 μV display resolution

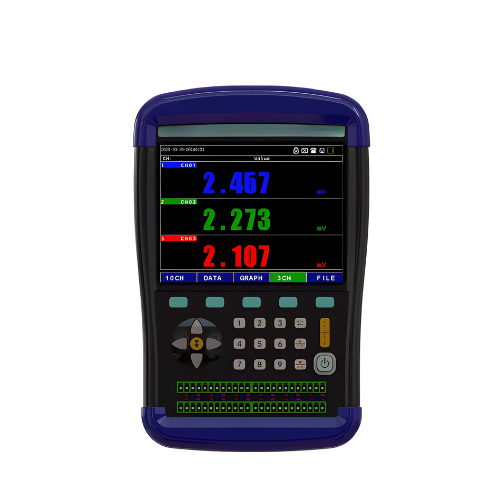

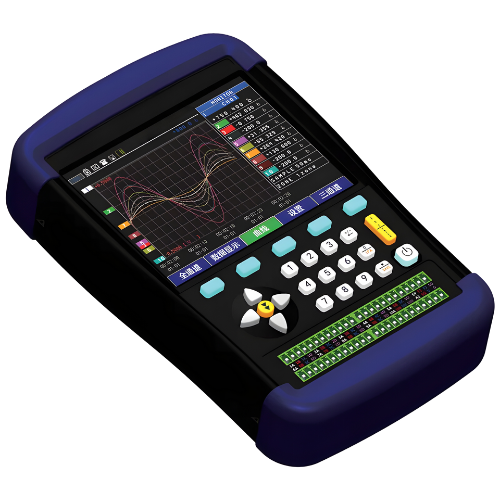

- The waveform of the 5.6 in (142.24 mm) LCD screen is clearly visible
- Temperature, humidity, voltage can be measured
- Current, pressure, gravity can be measured
- ±32.18 ℉ (0.1 ℃) measurement accuracy
- Equipped with Rozonik high-precision humidity sensor
Technical Specifications
| Number Of Analog Input Channels | 10 channels |
| Sampling Period | 50 ms to 1 h ( Single channel highest 5 ms) |
| Time Scale Of Waveform Display | 1 s to 24 h per scale |
| Trigger Action | High level test low level stop |
| Repetition Of Action | OFF ON(Automatic preparation) |
| Condition Trigger | High level |
| Alarm Output | Output signal at alarm value |
| Cumulative Mode | Cumulative number of pulses after starting measurement 50, 500, 5000, 50 k, 500 k, 5 M, 50 M, 500 M |
| In Channel Calculation | Addition, subtraction, multiplication and division of analog signals |
| Statistical | Average, peak, maximum, minimum, actual value |
| Pci/F Calculation | USB 2.0 full speed, wireless LAN |
| Storage Device Built-In | 32 GB Flash memory |
| Storage Device External | U disk (direct storage, transfer) |
| Save Content | Measurement conversion data (CSV, TXT) |
| Collection Mode | Circular recording function save the latest data (number of recorded data 1000 to 2000000) |
| Unit Conversion Function | The measured value can be converted between specified units |
| Monitor Size | 5.6 in (142.24 mm) TFT color liquid crystal display (resolution 640×480) |
| Screen Display | Numerical value and YT waveform only waveform numerical value and statistical calculation |
| Ac Adaptor | AC 100 V to 240 V, 50 Hz to 60 Hz, 1 standard power adapter |
| Dc Power Drive | DC 8.5 V to 24 V, Another DC drive line is required |
| Battery | Dry battery driver 8.4 V DC, 25000 mAh |
| Power Consumption | 36 V A or less |
| Use Environment | 32 ℉ to 113 ℉ (0 ℃ to 45 ℃), 5% RH to 85% RH (No condensation), 32 ℉ to 104 ℉ (0 ℃ to 40 ℃) during battery drive, 59 ℉ to 95 ℉ (15 ℃ to 35 ℃) during charging |
| Dimension | 9.02 in × 5.83 in × 1.81 in (229 mm × 148 mm × 46 mm) (not include projection) |
| Weight | About 2.83 lb. (1.28 kg) |
