Overview

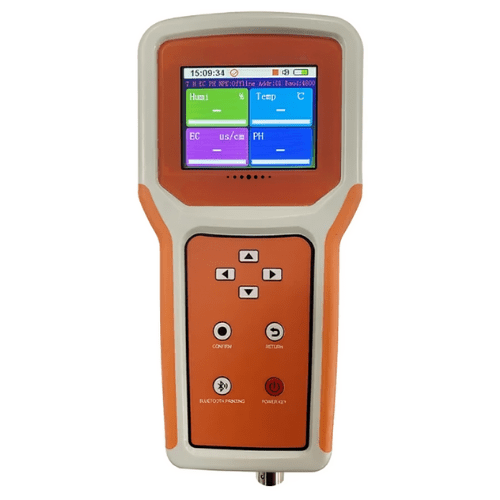

Hospitality Enviro Tech Handheld Nutrient Soil Quality Tester adopts the latest digital integrated circuit technology and international testing technology to design a brand new intelligent handheld tester. The recorder uses a large-size full-colour LCD display that can display the readings in real time. At the same time, it uses the detection circuit designed by the digital chip of an international manufacturer, which can achieve very high sensitivity and excellent repeatability, and the recorder is integrated Storage, recording, and analysis are integrated, and it can be flexibly connected to soil ph sensors, soil electrical conductivity, soil temperature and humidity and other equipment to realize the measurement of various soil parameters.
Features
- Measurement results can be displayed directly
- A variety of recording methods are optional
- Large-size colour display screen, large-capacity storage
- One-key export of data, convenient and quick
- The probe plug-in design ensures accurate measurement
Technical Specifications
| Power Supply | Battery powered (5000 mAh lithium) |
| Display | 2.8 in (7.11 cm) LCD display |
| Data Storage | 1 million data |
| Charging Time | ≤ 8 h |
| Communication Mode | USB (read, see DB9 interface for details) |
| Humidity | < 95% RH |
| Accessible Equipment | 1 to 4 Modbus device combination |
| Letter Of Agreement | Modbus-RTU protocol |
| Operating Voltage | DC 3.7 V |
| Standby Time | More than 8 h continuous |
| Power Supply | DC 4.5 V to 30 V |
| Conductivity Parameter | Range 0 us/cm to 20000 uS/cm Resolution 10 uS/cm Accuracy ± 3% in 0 us/cm to 10000 uS/cm, ± 5% in 10000 us/cm to 20000 uS/cm |
| Soil Moisture Parameter | Range 0% to 100% Resolution 0.1% Accuracy ± 2% within 0% to 50% at (brown soil, 30%, 77 °F (25 °C)), ± 3% within 50% to 100%, at (brown soil, 60%, 77 °F (25°C)) |
| Soil Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Output Signal | RS485 (Modbus protocol) |
| Power Supply | DC 5 V to 30 V |
| Measuring Range | 3 to 9 pH |
| Resolution | 0.1 |
| Response Time | ≤ 10 s |
| Long-term Stability | ≤ 5% per year |
| Probe Material | Anti-corrosion special electrode |
| Sealing Material | Black flame-retardant epoxy resin |
| Output Signal | RS485 (Modbus protocol) |
| Soil Temperature Parameter | Range -40 °F to 176 °F (-40 °C to 80 °C) Resolution 32.18 °F (0.1 °C) |
| Working Environment | 14 °F to 122 °F (-10 °C to 50 °C) |
| Size | 8.22 in x 3.93 in x 1.41 in (209 mm x 100 mm x 36 mm) |
| Weight | 17.63 oz (500 g) |
