Features
- Fully Auto Scale
- Vertical Scale and Time-base automatically adjusted with the signal
- Unique and powerful Auto Setup
- Quick and accurate to set up for signals with any DC component
- Wider voltage measuring range
- Isolated USB for much safer communication
- White and black display for your option, perfect for use outdoors with strong light
- Intelligent local or network software update
- More than 6 hours continuous battery operation
Technical Specifications
| Bandwidth | 25 MHz |
| Channels | 2 |
| Sampling rate | 250 MS/s |
| Rise time | ≤14 ns |
| Memory depth | 12 kpts |
| Vertical scale (V/div) | 5 mV/div to 20 V/div |
| Time base scale (s/div) | 10 ns/div to 50 s/div |
| Storage methods | Setup, waveform, bitmap |
| Trigger types | Edge, pulse width, video, slope |
| Interface | Mini USB |

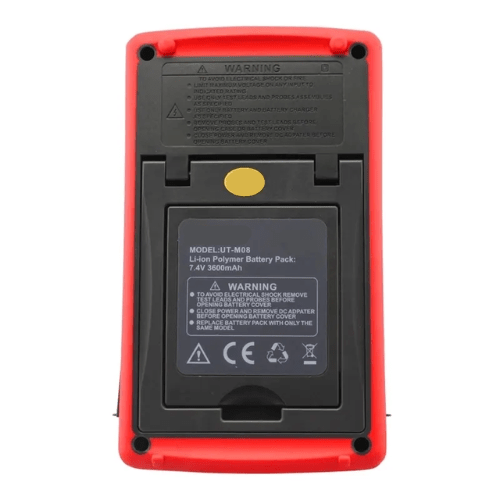

| Power | Li-ion battery: 7.4 V 3600 mAh; DC adapter: 100 V to 240 V, 50 Hz or 60 Hz input, 9 V/ 4 A output |

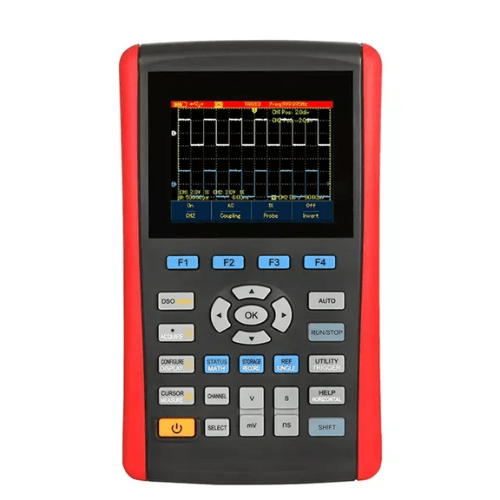

| Display | 3.5 inches 64 k TFT LCD, 320 x 240 |
| Product size | 7.8 in x 4.6 in x 1.9 in (199 mm x 118 mm x 49 mm) |
| Product net weight | 1.98 Ib (0.9 kg) |
