Overview

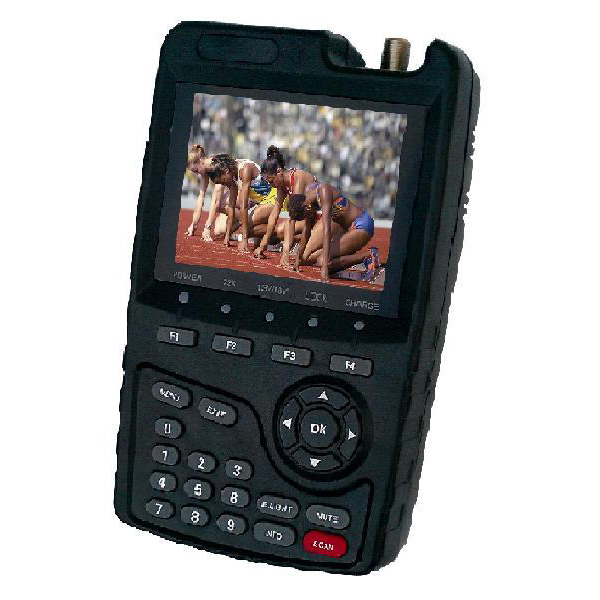

This compact digital satellite finder is specially designed to assist quick setup of satellite dishes and LNBs. With a built-in satellite tuner, it allows users to view specific FTA channels and assess their quality. It also enables user to select and verify equipment. Its A/V input allows connection with CCTV cameras making the device a very useful tool for use in video surveillance systems. The handheld digital satellite finder is able to help users to precisely set the focal length and focus of each camera. It offers BER, signal strength and signal quality indication and provides blind scan function.
Key Features
- DVB-S compliant satellite finder
- 3.5 inch TFT LCD screen with big fonts
- Play FTA channels
- BER, signal strength and signal quality indication
- Numerical reading and bar reading for signal strength and quality
- AV in and AV out function
- Blind scan function
- Sound and light alarm for lock signal
- 13V/18V for polarization selection, maximum 350 mA current capability
- 22K switch
- DiSEqC v1.0, v1.2 and USALS
- Upgrade S/W by USB flash disk
- Fast charge Li-ion battery, 4 hours continuous operation
Technical Specifications
| System Capabilities | Fully DVB-S Compliant | Yes |
| LNB input | Connector | F type, Female |
| Frequency Range | 950 MHz to 2150 MHz | |
| Signal Level | -65 dBm to -25 dBm | |
| LNB Power | 13/18 V, Max 350 mA | |
| LNB Switch Control | 22 KHz | |
| DiSEqC | Ver 1.0/ 1.2, USALS | |
| Demodulator | Front end | QPSK |
| Demodulation Range | 2 Mbps to 45 Mbps | |
| SCPC and MCPC Capable | Yes | |
| System Resources | Processor | 32 bit processor (133 MHz) |
| FLASH | 8 Mbyte | |
| SDRAM | 4×16 Mbyte | |
| Video Decoder | MPEG 2 | MP@ML |
| Data Rate | Max15 M bits/s | |
| Resolution | 720 x 576,720 x 480 | |
| Video format | PAL/NTSC/SECAM | |
| Audio | MPEG 1 | Layer 1&2 |
| Type | Mono | |
| Sampling Rate | 32, 44.1 & 48 KHz | |
| Data Transfer | Connector | USB |
| Power Supply | LI-ION battery | 3000 mAH/8.4 V Max |
| Power Adaptor | AC 100 to 220 V | |
| Physical characteristics | Size | 155 x 95 x 45 mm |
| Net Weight | 0.5 Kg |
