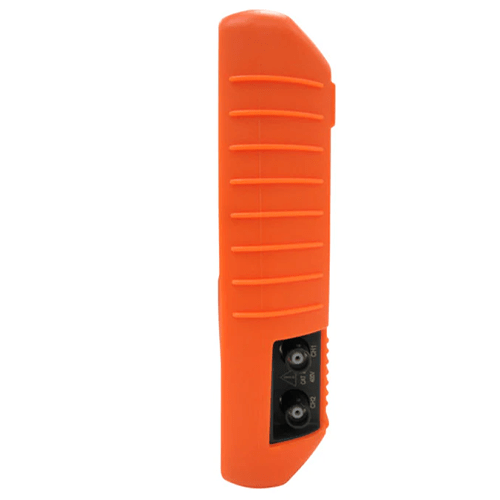

| Bandwidth |
20 MHz |
| Sample rate (Real time) |
100 MS or s |
| Horizontal Scale (S or div) |
5 ns or div to 100 s or div, step by 1 to 2.5 to 5 |
| Rise time (at input, typical) |
≤17.5 ns |
| Channels |
Dual |
| Input impedance |
1 MΩ ±2%, in parallel with 20 pF ±5 pF |
| Probe attenuation factor |
1 X, 10X,100 X,1000 X |
| Max. input voltage |
400 V (PK to PK) (DC + AC PK to PK, 1 MΩ input impedance, Probe attenuation 10:1), CAT II |
| Record length |
Max 6000 points on each channel |
| Interpolation |
(sin x) or x |
| Input coupling |
DC, AC, GND |
| Acquisition modes |
Sample, Peak Detect and Average |
| Vertical resolution (A or D) |
8 bits |
| Vertical sensitivity |
5 mV or div to 5 V div (at input) |
| DC gain accuracy |
±5 % |
| DC accuracy (Average) |
Average>16: ± (5% reading + 0.05 div) for V |
| Trigger type |
Edge, Video |
| Trigger mode |
Auto, Normal, Single |
| Trigger level |
±6 divisions from screen center |
| Automatic measurement |
Vpp, Vavg, RMS, Frequency, Period, Vmin, V top, Vbase, Width, Overshoot, Pre-shoot, Rise time, Fall time, +Width, -Width, +Duty, -Duty, Delay A→ B↑, Delay A→ B↓ |
| Waveform math |
+, -, ×, ÷ |
| Waveform storage |
4 waveforms |
| Lissajous’s figure Phase difference |
±3 degrees |
| Communication interface |
USB |
| Cymometer |
Unavailable |
| Power supply |
100 V to 240 V AC, 50 Hz to 60 Hz |

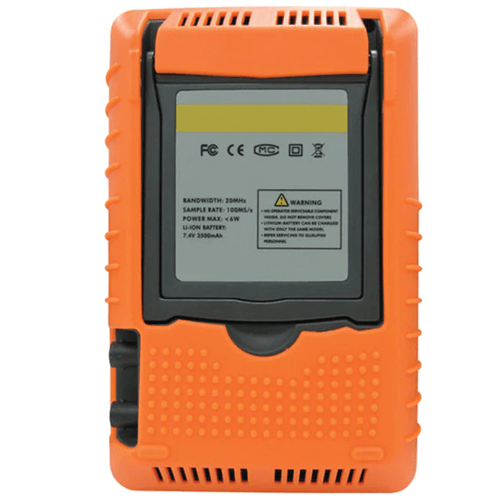

| Li-ion battery |
7.4 V, 3500 mAh |
| Full scale reading |
3 digits (Max 4000 to count) |
| Input Impedance |
10 MΩ |
| Capacitance |
51.2 nF t 100 uF: ± (3% ±3 digit) |
| Voltage |
VDC: 400 mV,4 V, 400 V: ± (1 ±1 digit) Max input: DC 1000 V, VAC: 4 V,40 V,400 V: ± (1 ± 3 digit), Frequency: 40 Hz to 400 Hz, Max input: AC 750 V (virtual value) |
| Current |
DCA: 40 mA, 400 mA: ± (1.5% ±1 digit) 20 A: ± (3% ±3 digit) D AA: 40 mA± (1.5% ±3 digit) 400 mA: ± (2 ±1 digit) 20 A: ± (3% ±3 digit) |
| Impedance |
400 Ω: ± (1% ±3 digit),4 KΩ to 40 MΩ (±1% ±1 digit) |
| Diode |
0 V to 1.5 V |
| On or Off measurement |
< 50 (±30) beeping |

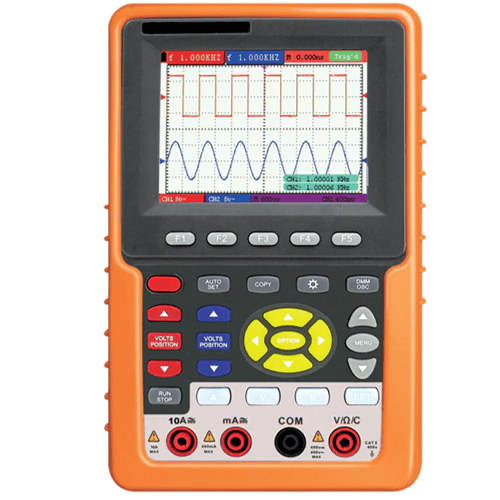

| Display |
3.7 in (9.3 cm) color display (640 × 480 pixels) |
