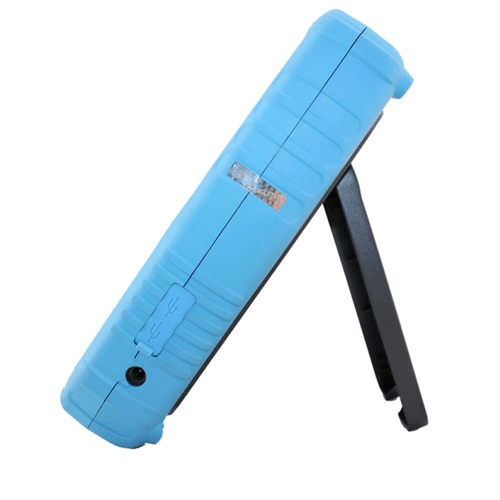

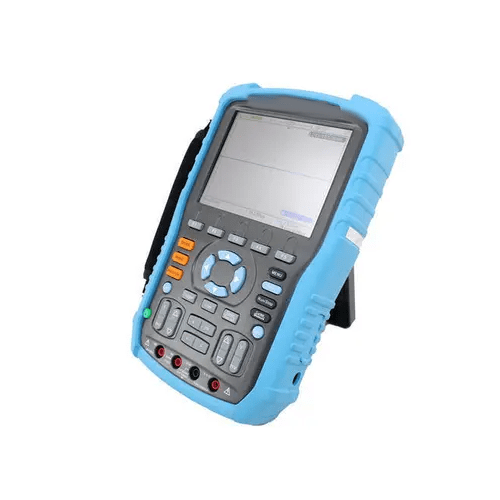

Features

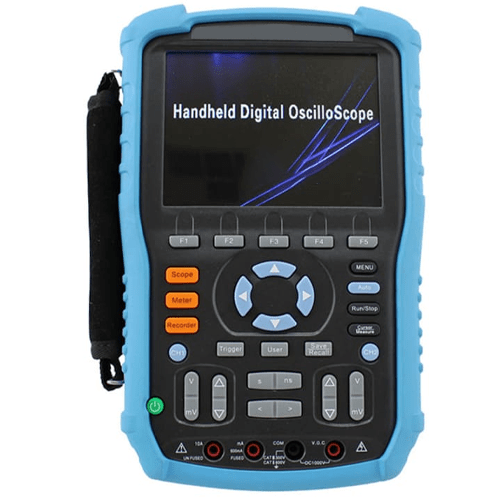

- High-performance oscilloscope
- Bandwidth: 60 MHz, 100 MHz, 150 MHz, 200 MHz
- Real-time sampling rate: 1 GSa or s
- Equivalent sampling rate: 50 GSa or s
- Memory depth: 2 Mpts
- Data recorder function
- 7M internal storage, up to 18 hrs recording time
- USB port, up to 3000 hrs recording time
- Record, replay and zoom function supported
- High precision multimeter
- 6000 counts display
- Accurate measurement of DCV, ACV, DCI, ACI
- Accurate measurement of Resistance, Diode, Capacitance, Continuity
- 32 measurement trend plot analyzers
- Scope: 800 k points capacity, more than 24 hrs recording time
- 93 ft (1.2 m) points capacity 9320 hrs recording time at 0.05 Sa or s
Technical Specification
| Bandwidth | 60 MHz,100 MHz, 150 MHz, 200 MHz |
| Rise Time | ≤5.8 ns, ≤3.5 ns, ≤2.3 ns, ≤1.7 ns |
| Input Impedance | 1 MΩ+ or -2%, 18 pf 3 pf |
| Real Time Sampling Rate | Single Channel: 1 GSa or s, Double Channels: 500 MSa or s500 MSa or s |
| Equivalent Sampling Rate | 50 GSa or s |
| Memory Depth | 2 Mpts32 Kpts |
| Time Base Range | 5 ns or div to 50 s or div2.5 ns or div to 50 s or div |
| Scan Range | 100 ms or div to 50 s or div |
| Vertical Sensitivity | 2 mV or div to 100 V or div (1 to 2 to 5 step) |
| Vertical Resolution | 8 bits |
| Trigger Types | Edge, Pulse, Video, Slope, Alternative |
| Frequency Counter | 6 bits |
| Connection | USB Device, USB Host |
| Math | +, -, *, /, FFT |
| Oscilloscope Trend Plot | 800 K point |
| Item | RangeAccuracy |
| DC Voltage | 60 mV to 1000 V, + or -1%+ or -15 digit |
| AC Voltage | 60 mV to 750 V, + or -1%+ or -15 digit |
| DC Current | 60 mV -10 A, +or-1%+ or -5 digit |
| AC Current | 60 mV -10 A, + or -1% + or -5 digit |
| Capacitance | 40.00 nF, + or -3% + or -10 digit400.0 nF, -400.0 uF,+ or -4%+ or -5digit |
| Resistance | 600 ohms to 196 ft (60 m) ohm+ or -1 % + or -5 digit |
| Continuity buzzer | <50 Ohm |
| Diode | 0 V to 2.0 V |
| Trend plot | 1.2 M points |
| Recorder | 7 M points |
| Measuring mode | Manual or Auto |

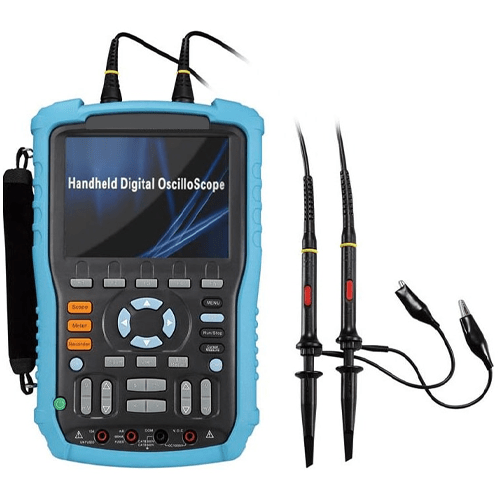

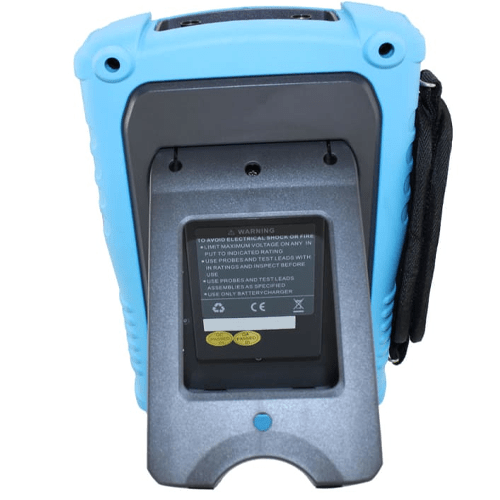

| Accessories | Two passive probes, multimeter pen USB data cable, DC adapter, manual, CD. |
| Display | 5.7 in (14.4 cm) color TFT-LCD, 320 x 234 |
| Display | 6000 |
| Power Supply | Charging or Battery |
| Power mode | Lithium battery: 7.4 V 5000 mAh, Battery lasts 5 hours; DC adapter, 100 V to 240 V 50 Hz or 60 Hz input, 9 V 4 A output |
| Weight | 3.3 lb (1.5 kg) |
| Dimension | 6.4 in x 10.2 in x 2 in (163.2 mm x 259.5 mm x 53.3 mm) |
