Overview

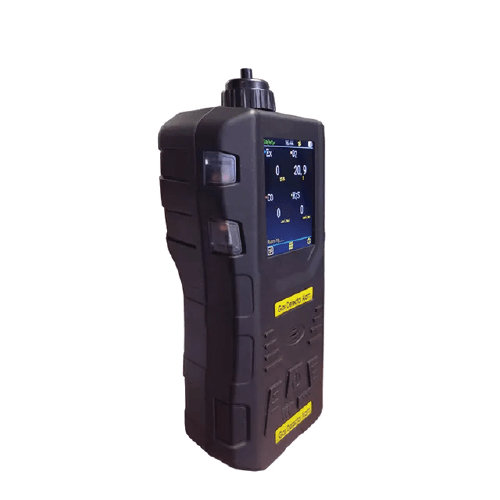

Hospitality Enviro Tech H2S & CO Gas Detector Alarm adopts a 2.4-inch high-definition full-color viewing angle IPS industrial screen and displays various technical indicators and gas concentration values. The shell adopts high IP encapsulation technology.
Features
- Dual gas detection Hydrogen Sulfide (H2S) and Carbon Monoxide (CO)
- Reliable alarm system for enhanced safety
- Continuous gas monitoring and analysis Suitable for various industrial applications
- Compact and easy-to-read design
Technical Specifications
| Detection principle | pump suction |
| Protection class | IP 65 |
| Sensor Type | Catalytic, Electrochemical, PID, Infrared |
| Measurement range | CO2: 0 PPM to 5000 PPM；CO: 0 PPM to 1000 PPM; H2S: 0 PPM to 100 PPM; O2: 0% VOL to 30 % VOL |
| Measurable gas | EX combustible gases, toxic gases or other gases as customer requirements |
| Applications | Chemical plants, mines, oil refineries, pharmaceutical plants, metallurgical plants, gas stations, liquefied gas stations, brewing, hotel kitchens |
| Feature | LED/LCD display + infrared sound and light alarm function; explosion-proof, anti-corrosion, dust-proof; remote control operation. lithium battery |
| Battery | DC 3.7 V lithium battery, 2000 mAh |
| Precision | ≤±5% FS |
| Working environment | -4 °F to 58 °F ( -20 ℃ to 50 ℃) |
| Product Size | 6.8 in × 2.9 in × 2.2 in (175 mm × 76 mm × 57 mm) |
| Fault indication | Indications of zero-point drift and sensor failure |
| Duration of operation | <300 h (non-stopped) |
| Ingress protection | IP 65 |
| Explosion proof | Ex ia IIC T4 Gb |
| Dimension | 4.0 in × 2.2 in ×1.0 in (102 mm × 56 mm × 26 mm) |
