Overview

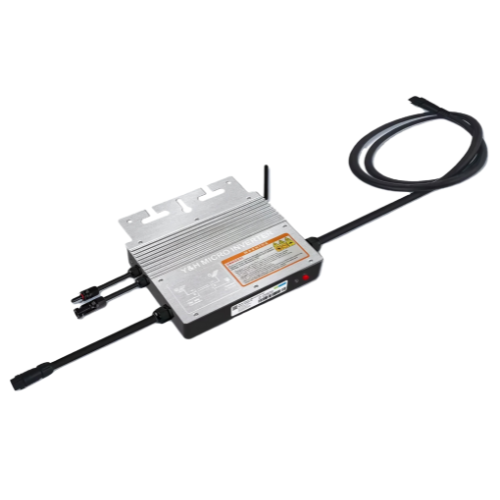

As the Hospitality Enviro Tech Grid Tie Micro Inverter with WIFI Waterproof MPPT works to convert DC power to AC power, it generates heat. This heat is added to the ambient temperature of the inverter enclosure, and the inverter dissipates the heat through fans and / or heat sinks. It uses an aluminium alloy casing for better heat dissipation. The design gears also allow the panel to come into contact with as much air as possible, physically cooling it down through the rapid flow of air.
n order to keep the heat low, the inverter will stop generating power or reduce the amount of power it generates by “derating” as it passes programmed temperature milestones or you can state this as ramp down of power.
Features
- Produce green and non-polluting energy. Reduce electricity costs
- Single-phase output, Flexible 3-phase PV systems
- WIFI With Cloud Monitoring
- Multiple units combined into a large solar system
- Maximum output power up to 590W; Adapted to 60 & 72 cells PV panels
- Maximum 600W input
- Integrated AC bus cable, Ready-To-Use
- On Grid inverter Low cost, Easy installation and reduced maintenance costs
Technical Specifications
| MPPT Voltage Range | 28 V to 50 V |
| Operation Voltage Range | 20 V to 55 V |
| Maximum Input Voltage | 55 V |
| Startup Voltage | 28 V |
| Maximum Input Power | 600 W |
| Maximum Output Power | 600 W |
| Nominal Output Voltage | 120 VAC to 230 VAC |
| Size | 13.38 in x 8.14 in x 2.4 in (34 cm x 20.7 cm x 6.1 cm) |
| Weight | 3.96 in (1.8 kg) |
