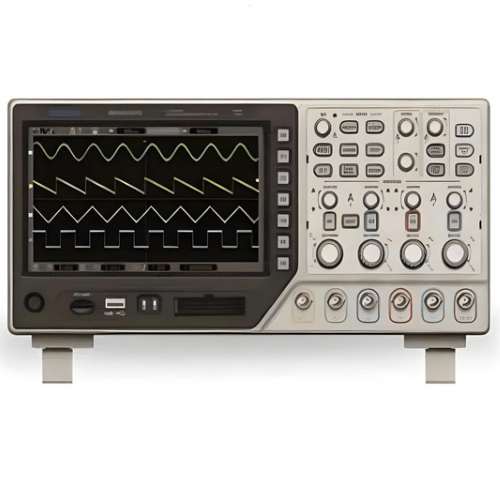

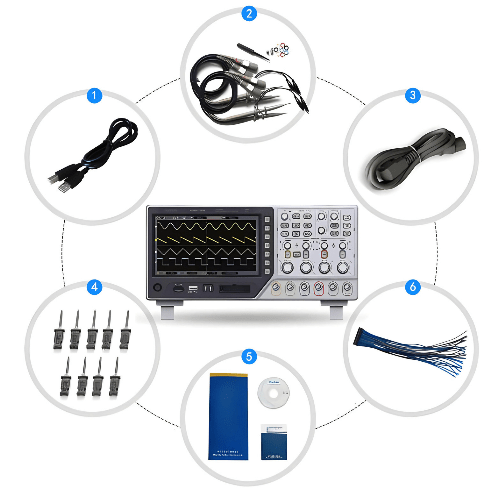

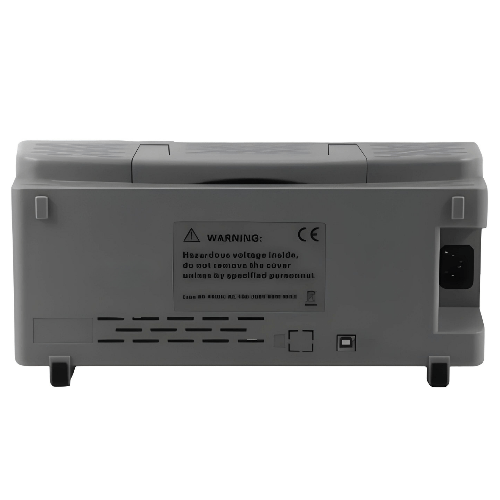

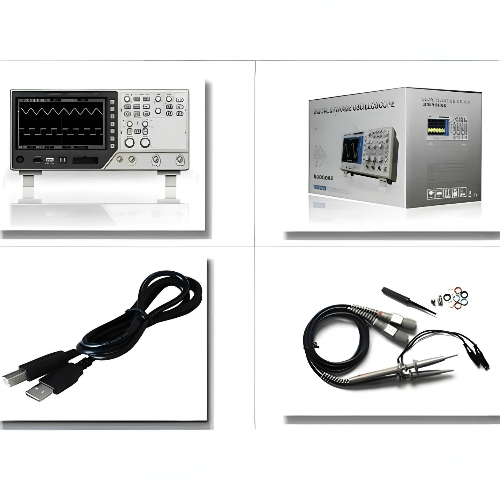

Features
- 4 channel oscilloscopes
- 8 channel logic analyzers
- +25 MHz Arb. waveform generator
- Video, Edge, Slope, Pulse Width, Alternative, Duration, Queue, Repeat trigger
- Large 7 inch 64K color Display, WVGA of 800 x 480
- USB host and device connectivity, standard
- Ultrathin design, handy volume, easily portable
Technical Specifications
| Channel | 4 |
| Bandwidth | 70 Mhz |
| Rise Time | 5 ns |
| Real Time Sample Rate | 1 GSa per s |
| Record Length | 1 M |
| SEC.DIV Range | 4 ns per div to 50 s per div |
| Delay Time Accuracy | 500 ps |
| A/D Converter | 8-bit resolution |
| Volts/Div Range | 2 mV per div to 5 V per div at input BNC |
| Position Range | 20 ns per div to 80 us/div: (-8 div x s per div) to 40 ms; 200 us per div to 40 s per div: (-8 div x s per div) to 400 s; |
| Input Coupling | AC, DC, GND |
| Coupling Modes | Auto, normal, single |
| Coupling Type | DC, AC, noise reject, HF reject, LF reject |
| Trigger Sensitivity | DC (CH1, CH2, CH3, CH4): from DC to 10 MHz; 1.5 div from 10 MHz to full; DC(EXT): 200 Mv from DC to full, DC(EXT): 1 V from DC to full AC: attenuates signals below 10 Hz
HF reject: attenuates signals above 80 KHz, LF reject same as the DC -coupled limits for frequencies above 150 KHz; attenuates signals below 150 KHz |
| Trigger Level Range | CH1, CH2, CH3, CH4: 0.2 div x volts/div within ±4 divisions from center of screen; ET: ± 1.2 V, EXT 5: ±6 V |
| Trigger Level Accuracy (Typical) Signals Having Rise and Fall Time ≥ 20 ns | CH1, CH2, CH3, CH4: 0.2 div x volts per div within ±4 divisions from center of screen; EXT: ± (6% of setting + 40 Mv); EXT: ± (6% of setting +200 Mv); |
| Set Level to 50% | Operates with inputs signals ≥ 50 Hz |
| Wave Frequency | DC to 25 MHz |
| DAC Clock | 2 K to 200 MHz adjustable |
| Waveform Length | 4 Ksa |
| Vertical Resolution | 12 bit |
| Frequency Stabilization | <30 ppm |
| Amplitude | ±3.5 V max |
| Output Impedance | 50 Ω |
| Wave Distortion | -50 dBc (1 KHz), -40 dBc (10 KHz) |
| Frequency Area | DC to 50 MHz |
| Input Amplitude | 400 mVpp to 18 Vpp |
| Coupling | DC |
| Frequency Precision | ± time base error ± 1 count |
| Input Impedance | >100 KΩ |
| Pattern Generator | 12 bit |
| Supply Voltage | 100 VACRMS to 120 VACRMS (±10%), 45 Hz to 440 Hz ; 120 VACRMS to 240 VACRMS (±10%), 45 Hz to 66 Hz |
| Power Consumption | <30 W |
| Dimensions | 15.2 in x 7.9 in x 9.6 in (385 mm x 200 mm x 245 mm) |
| Weight | 7.72 Ib (3.5 Kg) |
