Overview

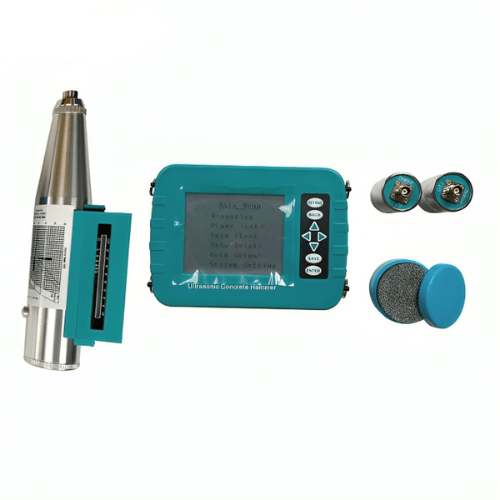

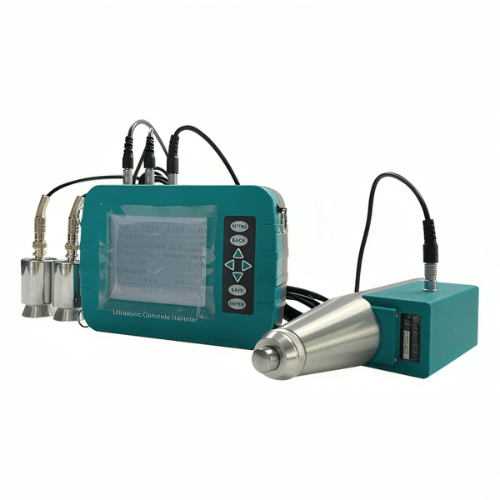

Hospitality Enviro Tech Flaw Ultrasonic Detector is a comprehensive tool designed for testing the strength of concrete. It serves as both a conventional rebound tester and an ultrasonic rebound comprehensive tester. Its capabilities include measuring rebound values, sound time, and sound speed. Specifically crafted for non-destructive testing, it proves suitable for assessing the common compressive strength of concrete in various construction projects.
Technical Specification
| Weight | 15.43 lbs.(7kg) |
| Dimensions | 16.53 in x 5.51 in x 13.18 in (420 mm x 140 mm x335 mm) |
| Ultrasonic Indication Error | ± 0.1 μs |
| Ultrasonic Transducer Operating Frequency | 50 KHz |
| Instrument Ultrasonic Frequency Range | 5 Hz to 500 KHz |
| Data Transmission Model | Wireless cloud transmission(optional) |
| Spring back apparatus nominal kinetic energy | 2.207 J |
| Stiffness of Spring strike | 785.0 ± 40.0 (N/m) |
| Impact length of ram | 75 ± 0.3 |
| Rebound value indication error | ＜ ± 0.5 |
| Rebound value average steel anvil rate | 80 ± 2 |
| Power Supply Mode | Large capacity lithium battery, power supply time is more than 8 hours |
| Working Environment | 14 °F to 104 °F (-10℃ to 40℃) |
