Overview

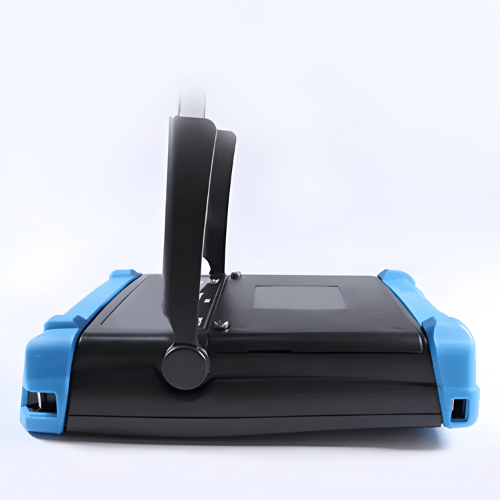

User friendly dialog interactive helps operations like Calibration, making curves, etc. All tools you need: DAC, AVG, color Bscan, AWS, etc. Pulse Repeatition Frequency: 20-3000Hz precise adjust, high speed scan, no miss out. High Signal to noise ratio, clear and stable echo, anti-noise design, perfect for tough working conditions. 12-digit AD, high speed sampling leads to better echo diagram with all details. Sensitive and can detect even tiny flaws. Crystal clear true-color display. Helpful user interface makes the operation much easier. High speed real-time flaw detection video recording. Unlimited USB data storage. Blue tooth connection to mobile device to generate and print detection reports on-site. IP65 standard. Alloy + Silica gel case, water and dust proof, solid and lasts forever. Damping support makes it stands in any angle. Battery lasts 15 hours for one charge. Each battery has own charging control so with two batteries it can work around the clock.
Technical Specifications
| Operating Temperature | 14°F to 122°F (-10℃ to 50℃) |
| Storage Temperature | -22°F to 122°F (-30℃ to 50℃) |
| Display Delay | -20 to 3400 µs |
| Probe Delay/Zero Offset | 0 to 99.99µs |
| Rectification | Positive half wave, negative half wave, full wave, RF System |
| Gate Monitors | Two independent gates controllable over entire sweep range |
| Range | 0 to 393.7in/s (0 to 10000mm), at steel velocity |
| Material Velocity | 3.93in to 787.4in (100～20000m/s) |
| Pulse Repetition Frequency | 20-3000Hz |
| Dynamic Range | ≥38dB |
| Linearity | Horizontal: +/-0.2% FSW, Vertical: 0.25% FSH, Amplifier Accuracy +/-1 dB. |
| Resolving Power | >40dB (5P14) |
| Sensitivity Leavings | >66dB |
| Reject (Suppression) | 0 to 80% full screen height |
| Probe Types | Single Straight, Single Angle, Daul Straight, Daul Anlge, Thrugh, Creeping, Surface |
| Bandwidth (Amplifier Bandpass) | 0.2 to 35 MHz |
| Power Requirements | AC Mains 100-240 VAC, 50-60 Hz |
| Operating Time | 15 Hours |
| Recharge Time | 4 Hours |
| Pulse Energy | 200V, 300V, 400V, 500V selectable |
| Dimensions | (240 mm ×175 mm ×60 mm) |
| Weight | (1.2kg) |
